| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
997 pcs
|
997 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance |

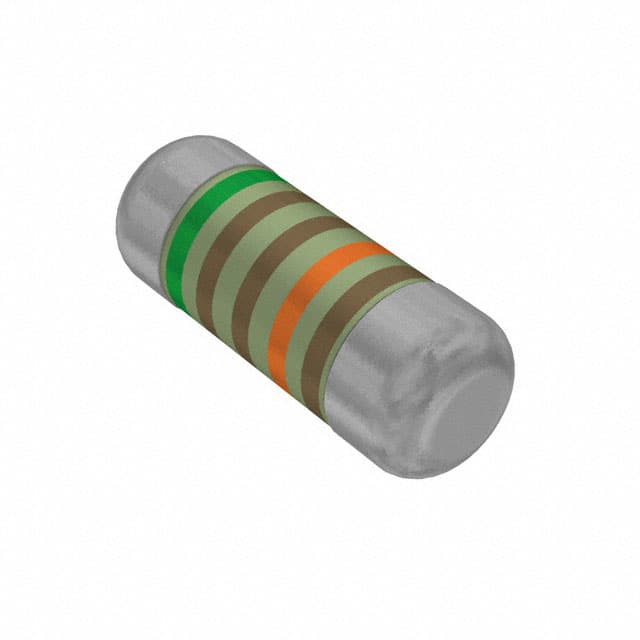

The Vishay Dale SMM02040C5113FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
This resistor offers a resistance value of 511 kΩ with a tight tolerance of ±1%. It has a power rating of 1/4W and a temperature coefficient of ±50ppm/°C. The operating temperature range is -55°C to 125°C, with a permissible film temperature of up to 155°C.
The Mini-MELF package has a size of 0.055" diameter by 0.142" length (1.40mm x 3.60mm). The component has 2 terminations and is suitable for surface mounting. Its intrinsic sulfur resistance and pulse withstanding capabilities further enhance its reliability.
Typical applications include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 511 kΩ.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is in a Mini MELF package, size 0204.
Yes, this resistor is AEC-Q200 qualified.
