| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

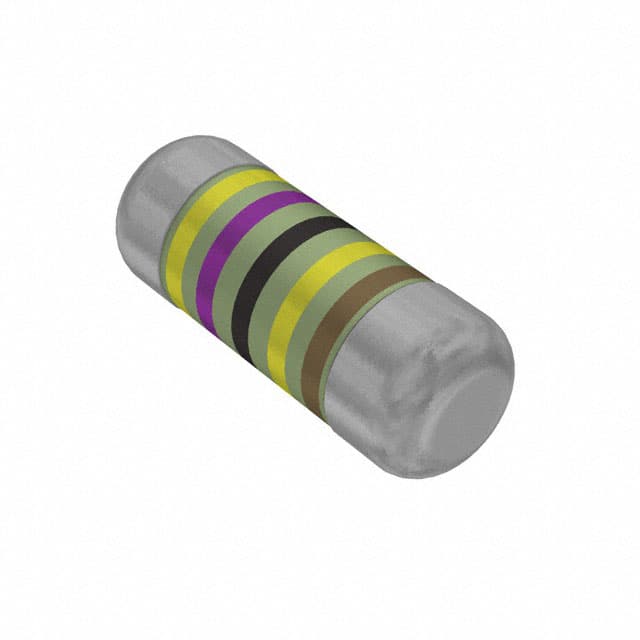

The Vishay Dale SMM02040C4704FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 4.7 MΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This resistor operates within a temperature range of -55°C to 125°C, with a maximum permissible film temperature of 155°C. Its advanced metal film technology and intrinsic sulfur resistance contribute to its excellent stability in various environmental conditions. The component is AEC-Q200 qualified, making it suitable for demanding applications.
The Mini-MELF package, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm), is designed for surface mounting. It has 2 terminations and a supplier package designation of Mini MELF.
Key electrical characteristics include a temperature coefficient of ±50ppm/°C and a maximum operating voltage of 200V. The failure rate is observed to be less than or equal to 0.05 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 4.7 MΩ.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The operating temperature range is -55°C to 125°C.
The temperature coefficient is ±50ppm/°C.
Yes, this resistor is AEC-Q200 qualified.
