| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,274 pcs
|
1274 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
974 pcs
|
974 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

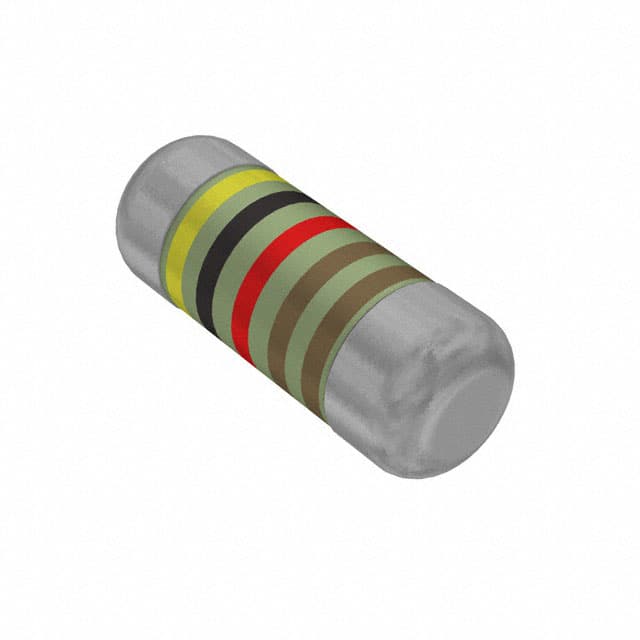

The Vishay Dale SMM02040C4021FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It offers a precise resistance of 4.02 kOhms with a tight tolerance of ±1% and a power rating of 0.25W.
This resistor utilizes advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment. It features intrinsic sulfur resistance and a wide operating temperature range of -55°C to 155°C. The Mini-MELF package (0204 size) ensures a compact footprint.
Key electrical specifications include a maximum operating voltage of 200V and a temperature coefficient of ±50ppm/°C. The datasheet also indicates a rated dissipation of 0.4W and a maximum permissible film temperature of 155°C, along with a low failure rate.
Applications for this resistor include automotive, telecommunication, industrial, and medical equipment where reliability and stability are critical. Its robust construction and specific features like pulse withstanding capability enhance its suitability for challenging environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 4.02 kOhms.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
It is a Mini MELF package, size 0204.
