| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,063 pcs
|
2063 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

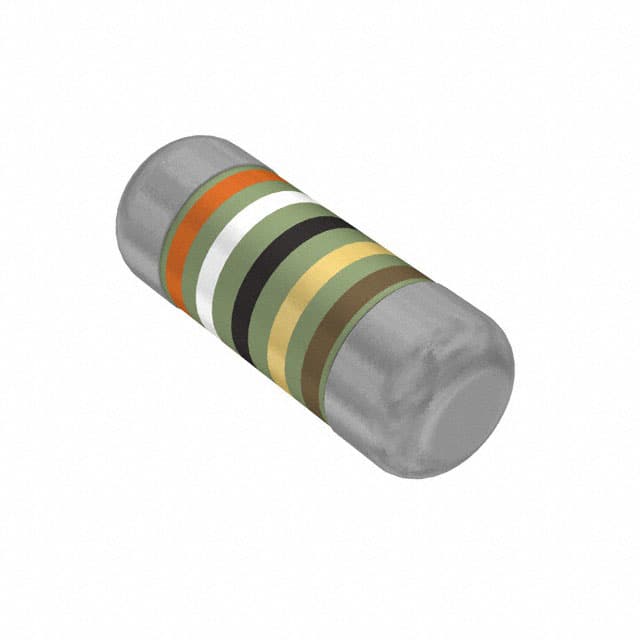

The Vishay Dale SMM02040C3909FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment.
This resistor offers a resistance value of 39 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is from -55°C to 125°C.
The Mini-MELF package has dimensions of 0.055" diameter by 0.142" length (1.40mm x 3.60mm). The component is designed for PCB mounting and is supplied on a reel.
Key features include intrinsic sulfur resistance and best-in-class pulse load capability, ensuring robust performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 39 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is a Mini-MELF resistor in the 0204 package size.
Yes, the SMM02040C3909FB300 resistor is AEC-Q200 qualified.
