| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,070 pcs
|
1070 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,054 pcs
|
1054 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

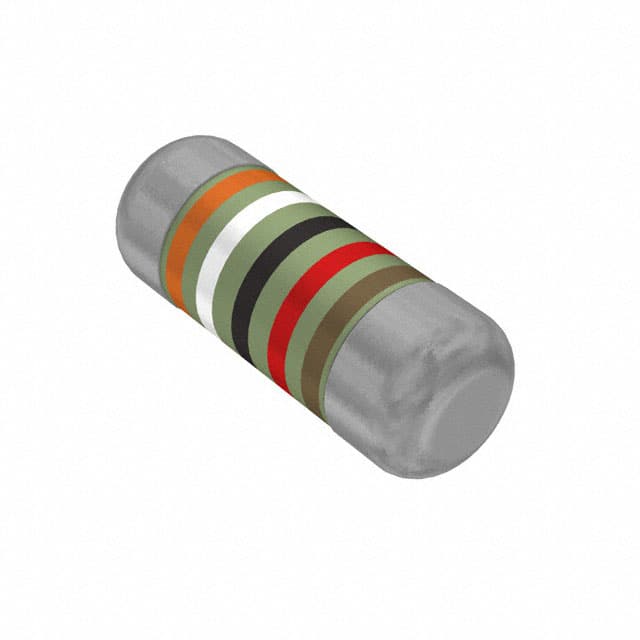

The Vishay Dale SMM02040C3902FB300 is a thin film resistor designed for applications requiring reliability and stability. It features a resistance value of 39 kΩ with a tight tolerance of ±1% and a power rating of 0.25W.
This resistor operates within a temperature range of -55°C to 125°C and has a temperature coefficient of ±50ppm/°C. Its construction utilizes advanced metal film technology, offering intrinsic sulfur resistance and pulse withstanding capabilities. The component is qualified to AEC-Q200 standards, making it suitable for demanding automotive and industrial environments.
The SMM02040C3902FB300 is housed in a MELF, 0204 package, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). It is supplied in tape and reel packaging, suitable for surface mount assembly.
Key specifications include a 2-termination design and a thin film composition. The product is also noted for its anti-sulfur properties and suitability for pulse applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 39 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
The package type is MELF, 0204.
Yes, the SMM02040C3902FB300 resistor is AEC-Q200 qualified.
