| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,932 pcs
|
2932 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

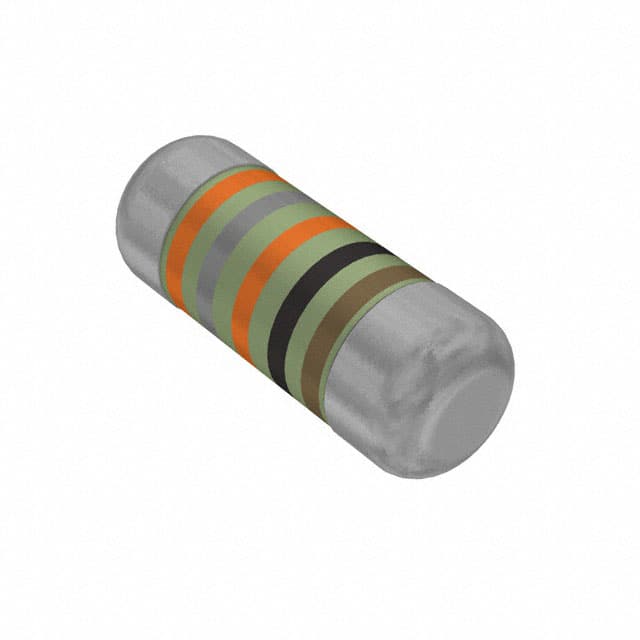

The Vishay Dale SMM02040C3830FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding environments.
This resistor offers a resistance value of 383 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is from -55°C to 155°C, with a permissible film temperature of up to 155°C.
The Mini-MELF package (0204 DIN size) is suitable for surface mount applications. The resistor's construction provides intrinsic sulfur resistance and best-in-class pulse load capability. It is designed for applications in automotive, telecommunication, industrial, and medical equipment fields where proven reliability is essential.
Key features include its advanced metal film technology, AEC-Q200 qualification, and excellent stability under various environmental conditions. The component also boasts an intrinsic sulfur resistance and a high pulse load capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 383 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is in a MELF, 0204 package, specifically a Mini MELF.
Yes, the resistor is AEC-Q200 qualified.
