| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

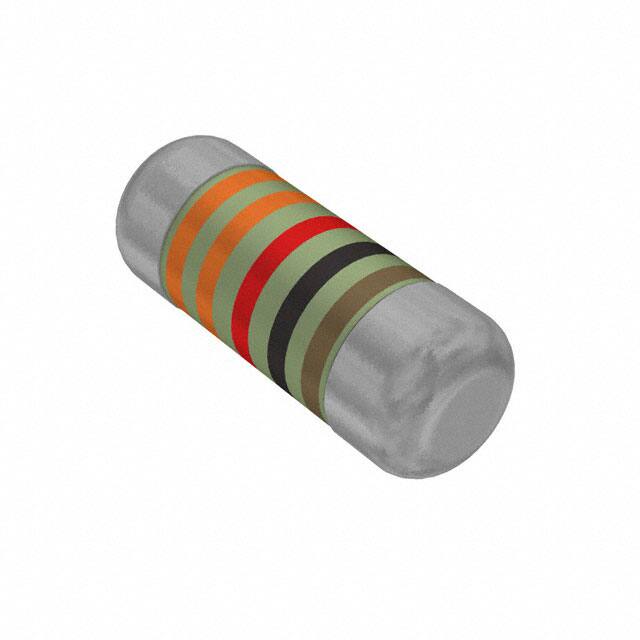

This Vishay Dale SMM02040C3320FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It offers a resistance value of 332 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
The resistor operates across a wide temperature range from -55°C to 125°C, with a maximum film temperature of 155°C. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
The Mini-MELF package, size 0204, measures 0.055" Dia x 0.142" L (1.40mm x 3.60mm). Its construction is thin film, and it has 2 terminations. The component is also noted for its intrinsic sulfur resistance and pulse load capability.
Key specifications include a temperature coefficient of ±50ppm/°C and an operating voltage of up to 200V AC RMS/DC. The failure rate is observed to be less than or equal to 0.05 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 332 Ohms.
The tolerance is ±1%.
The power rating is 0.25W (1/4W).
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
Yes, this resistor is AEC-Q200 qualified.
