| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance |

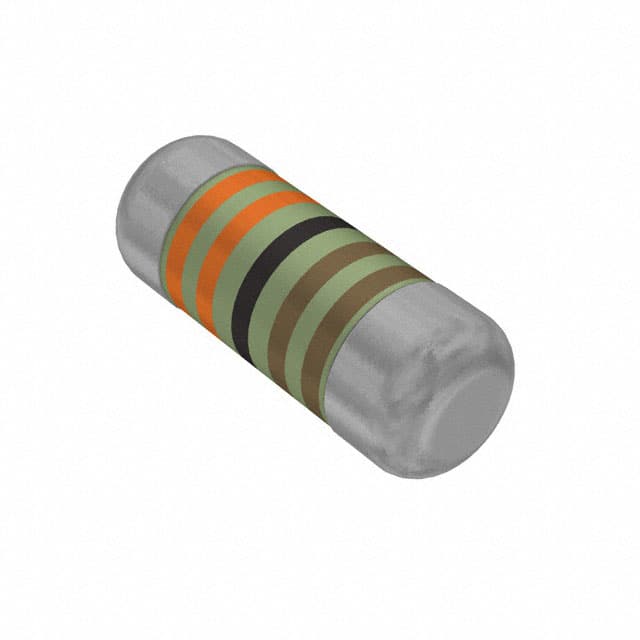

The Vishay Dale SMM02040C3301FB000 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 3.3 kΩ with a tight tolerance of ±1% and a temperature coefficient of ±50ppm/°C.
This resistor is rated for 0.25W (1/4W) of power dissipation and can operate within a temperature range of -55°C to 155°C. The component is AEC-Q200 qualified, indicating its suitability for automotive applications. It also offers intrinsic sulfur resistance and pulse withstanding capabilities.
The MELF, 0204 package has dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). The advanced metal film technology ensures excellent stability under various environmental conditions, making it a reliable choice for telecommunication, industrial, and medical equipment.
Key specifications include a maximum operating voltage of 200V and a permissible film temperature of 155°C. The failure rate is observed to be less than or equal to 0.05 x 10^-9/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the SMM02040C3301FB000 resistor is 3.3 kΩ.
The tolerance of the SMM02040C3301FB000 resistor is ±1%.
The power rating for the SMM02040C3301FB000 resistor is 0.25W or 1/4W.
The operating temperature range for this resistor is -55°C to 125°C.
The temperature coefficient of the SMM02040C3301FB000 resistor is ±50ppm/°C.
The SMM02040C3301FB000 resistor is supplied in a Mini MELF package, specifically the 0204 size.
Yes, the SMM02040C3301FB000 resistor is AEC-Q200 qualified.
