| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,739 pcs
|
2739 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

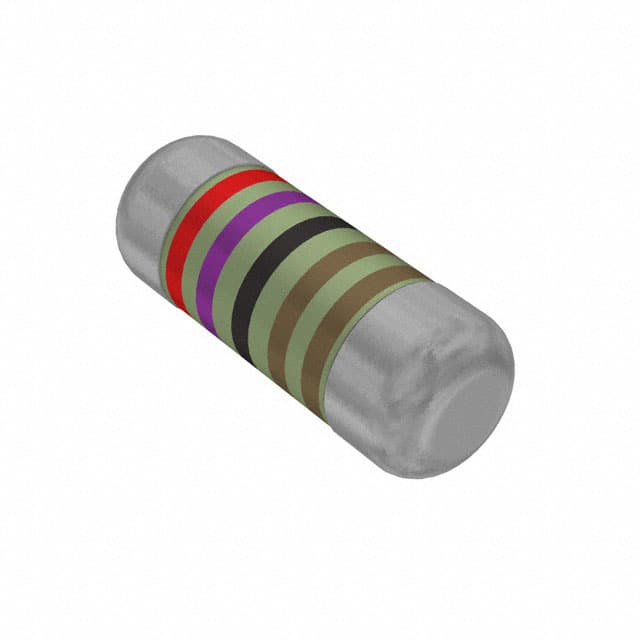

The Vishay Dale SMM02040C2701FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 2.7 kΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This resistor operates within a wide temperature range of -55°C to 155°C, with a permissible film temperature of up to 155°C. The component utilizes advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding environments. Its intrinsic sulfur resistance and pulse withstanding capability further enhance its reliability.
The MELF, 0204 package size measures 0.055" Dia x 0.142" L (1.40mm x 3.60mm). The resistor has 2 terminations and a thin film composition. It is designed for surface mount applications.
Key specifications include a temperature coefficient of ±50ppm/°C, an operating voltage of up to 200V, and a permissible insulation voltage of 300V. The failure rate is observed to be less than or equal to 0.05 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.7 kΩ.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
It is in a MELF, 0204 package, specifically a Mini MELF.
Yes, this resistor is AEC-Q200 qualified.
