| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,021 pcs
|
3021 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

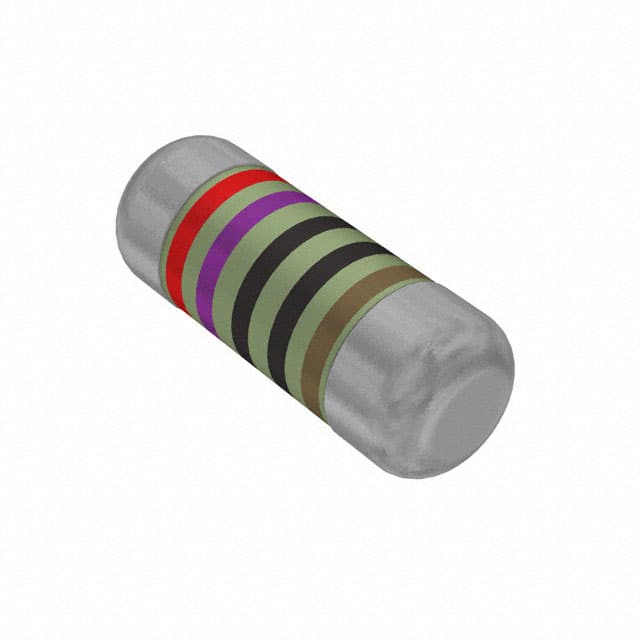

The Vishay Dale SMM02040C2700FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 270 Ohms with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This resistor is built using advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding automotive, industrial, and medical equipment applications. It offers intrinsic sulfur resistance and excellent stability under various environmental conditions, along with best-in-class pulse load capability.
The component operates within a temperature range of -55°C to 155°C and has a nominal temperature coefficient of ±50ppm/°C. The Mini-MELF package (0204 size) is designed for surface mounting.
Key specifications include a rated dissipation of 0.4W, a maximum operating voltage of 200V, and a permissible film temperature of 155°C. The failure rate is specified as less than or equal to 0.05 x 10^-9/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 270 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
It is in a Mini MELF package, size 0204.
