| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,960 pcs
|
1960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

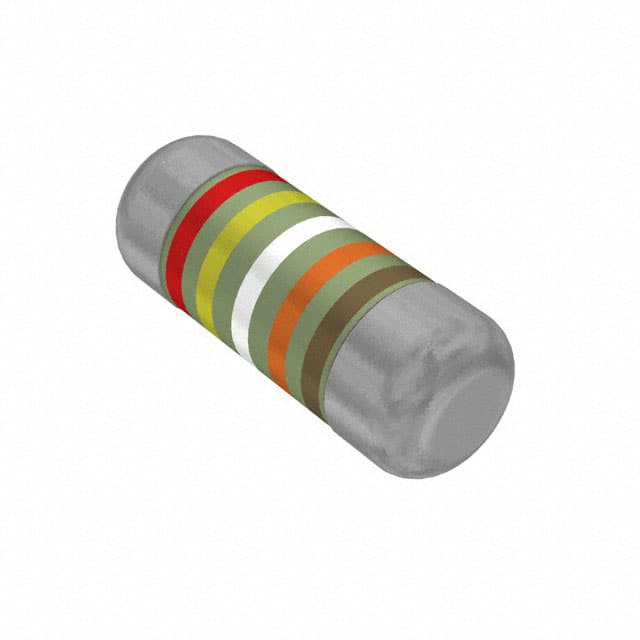

The Vishay Dale SMM02040C2493FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified.
Key electrical specifications include a resistance of 249 kΩ with a tight tolerance of ±1%. The resistor has a power rating of 0.25W at 70°C and a temperature coefficient of ±50ppm/°C. It operates within a temperature range of -55°C to 155°C and has a maximum operating voltage of 200V.
This component is suitable for applications in automotive, telecommunication, industrial, and medical equipment. Its Mini-MELF package is cylindrical, measuring 1.40mm x 3.60mm, and is designed for surface mounting with wrap-around terminations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 249 kΩ.
The tolerance is ±1%.
The power rating is 0.25W at 70°C.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
The package type is Mini MELF, size 0204, designed for surface mounting.
Yes, the SMM02040C2493FB300 resistor is AEC-Q200 qualified.
