| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
988 pcs
|
988 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

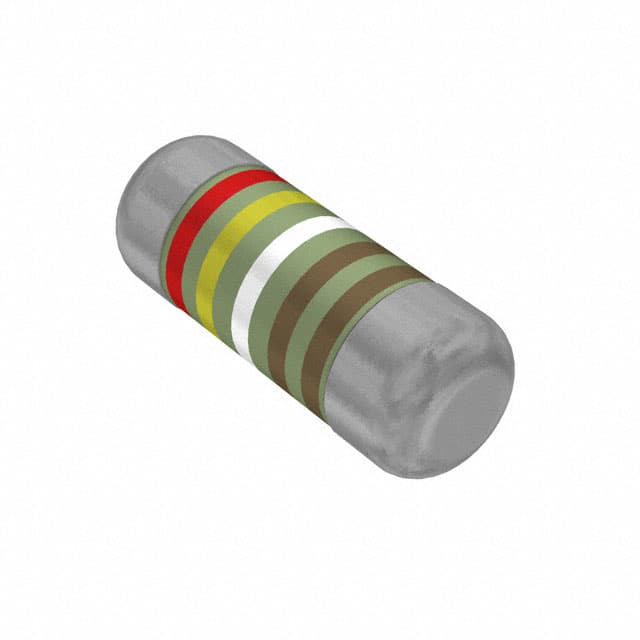

This Vishay Dale SMM02040C2491FB300 is a thin film resistor designed for reliability and stability in modern electronics. It features a resistance value of 2.49 kΩ with a tight tolerance of ±1%. The resistor is rated for 0.25W of power and operates within a temperature range of -55°C to 125°C.
Constructed using advanced metal film technology, this Mini-MELF component is AEC-Q200 qualified, indicating its suitability for automotive applications. It offers excellent stability under various environmental conditions and has intrinsic sulfur resistance. The component's dimensions are 0.055" diameter by 0.142" length (1.40mm x 3.60mm).
Key specifications include a temperature coefficient of ±50ppm/°C and an operating voltage of up to 200V DC/AC RMS. The permissible film temperature is 155°C, and the insulation voltage is 300V for 1 minute. The failure rate is observed to be less than or equal to 0.05 x 10^-9/h.
This resistor is ideal for applications requiring high reliability, such as automotive, telecommunication, industrial, and medical equipment. Its MELF, 0204 package type and thin film composition make it a robust choice for surface mount designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.49 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to 125°C.
The temperature coefficient is ±50ppm/°C.
It is a MELF, 0204 package, also referred to as Mini MELF.
Yes, the SMM02040C2491FB300 resistor is AEC-Q200 qualified.
