| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
227 pcs
|
227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

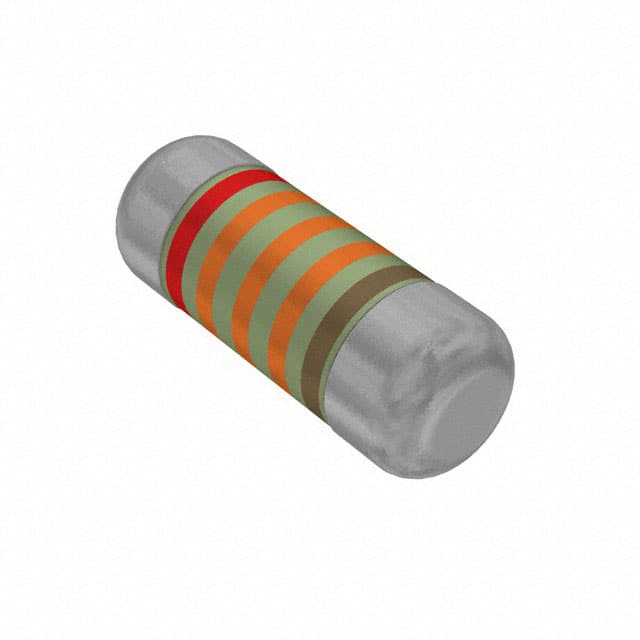

The Vishay Dale SMM02040C2323FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 232 kΩ with a tight tolerance of ±1%. The resistor is rated for a power dissipation of 0.25W (1/4W) and can operate within a temperature range of -55°C to 155°C.
This component utilizes advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding automotive, industrial, and medical equipment applications. Its intrinsic sulfur resistance and pulse-withstanding capability further enhance its reliability in challenging environments. The MELF, 0204 package size is 0.055" Dia x 0.142" L (1.40mm x 3.60mm).
Key electrical specifications include an operating voltage of 200V and a temperature coefficient of ±50ppm/°C. The permissible film temperature is 155°C, and it has a failure rate of less than 0.05 x 10⁻⁹/h. The component has 2 terminations and is classified under the SMM0204 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 232 kΩ.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It is a MELF, 0204 package, also referred to as Mini MELF.
Yes, the SMM02040C2323FB300 is AEC-Q200 qualified.
