| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87,950 pcs
|
87950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

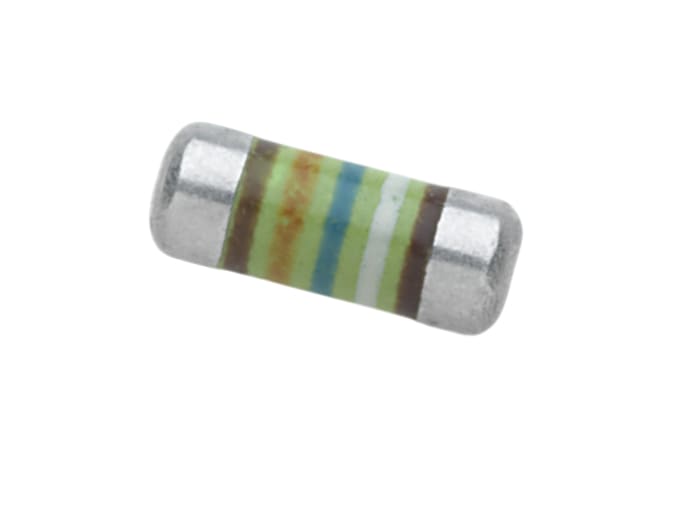

The Vishay Dale SMM02040C2209FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features a resistance value of 22 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
This resistor operates across a wide temperature range from -55°C to 155°C, making it suitable for demanding environments. Its advanced metal film technology and intrinsic sulfur resistance contribute to its stability and longevity. The component is AEC-Q200 qualified, indicating its suitability for automotive applications.
The Mini-MELF package, specifically the 0204 size, is designed for surface mounting. This form factor is common in modern electronics where space efficiency and reliable assembly are crucial. The resistor has 2 terminations and a size of 1.40mm x 3.60mm.
Key specifications include an operating voltage of up to 200V, a temperature coefficient of ±50ppm/°C, and a failure rate of ≤ 0.05 x 10⁻⁹/h. These characteristics make it a robust choice for various industrial, automotive, and telecommunication applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, the resistor is AEC-Q200 qualified.
It uses the 0204 Mini-MELF package designed for surface mounting.
