| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,225 pcs
|
1225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,225 pcs
|
1225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
998 pcs
|
998 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

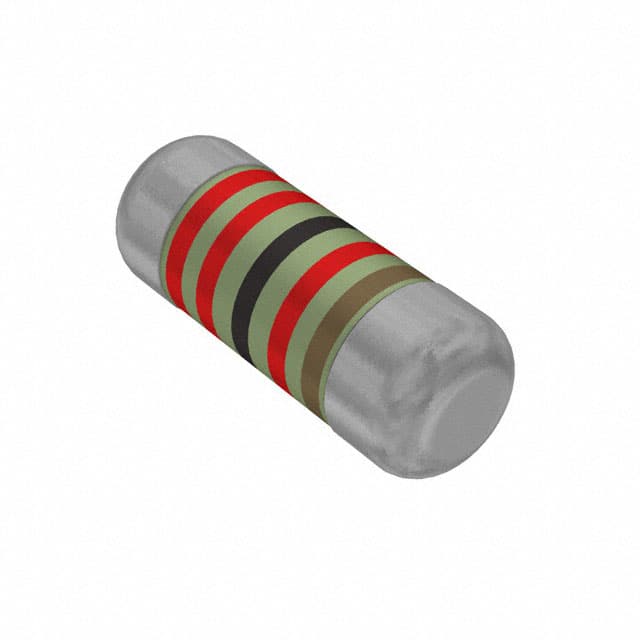

The Vishay Dale SMM02040C2202FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified.
Key electrical specifications include a resistance of 22 kΩ with a tight tolerance of ±1% and a temperature coefficient of ±50ppm/°C. The resistor is rated for 0.25W of power and can operate within a temperature range of -55°C to 155°C. The datasheet indicates a higher rated dissipation of 0.4W and a maximum operating voltage of 200V.
This component is housed in a MELF, 0204 package, specifically a Mini MELF, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). Its construction is thin film, and it possesses features such as anti-sulfur properties, pulse withstanding capability, and automotive AEC-Q200 qualification, making it suitable for demanding applications.
Typical applications for this series include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
It is a MELF, 0204 package, specifically a Mini MELF.
Yes, this resistor is AEC-Q200 qualified.
