| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
228 pcs
|
228 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

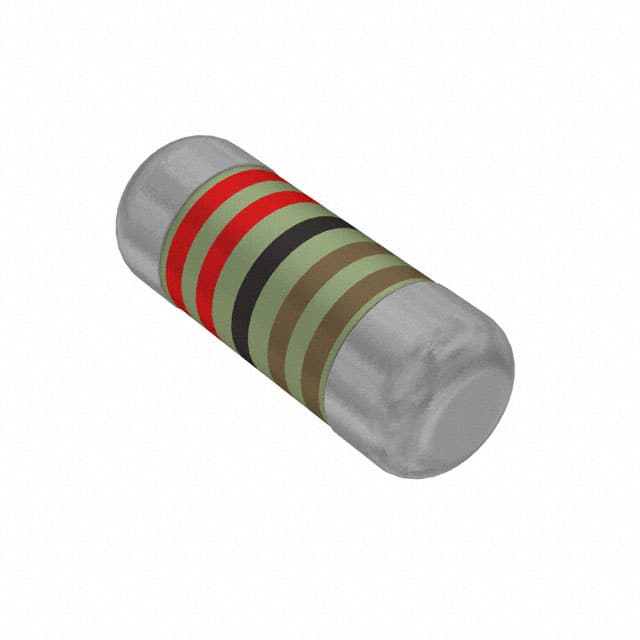

The Vishay Dale SMM02040C2201FB300 is a thin film resistor from the SMM0204 series, designed for reliability and stability in modern electronics. It features a resistance of 2.2 kΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This Mini-MELF resistor operates within a temperature range of -55°C to 125°C, with a maximum permissible film temperature of 155°C. Its advanced metal film technology and AEC-Q200 qualification make it suitable for demanding applications.
The component is housed in a MELF, 0204 package with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). It has 2 terminations and is designed for surface mounting.
Key features include intrinsic sulfur resistance and best-in-class pulse load capability, making it a robust choice for automotive, telecommunication, industrial, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2 kΩ.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is a MELF, 0204 package, also known as Mini MELF.
