| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,933 pcs
|
1933 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,933 pcs
|
1933 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

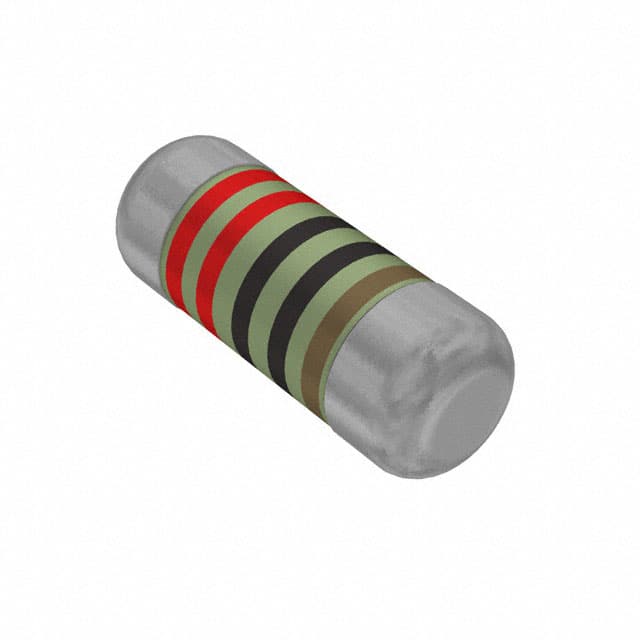

The Vishay Dale SMM02040C2200FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
This resistor offers a resistance value of 220 Ohms with a tight tolerance of ±1%. It is rated for a power dissipation of 0.25W (1/4W) and operates within a temperature range of -55°C to 125°C. The temperature coefficient is ±50ppm/°C.
The Mini-MELF package (DIN size 0204) is suitable for surface mount applications. Its dimensions are 0.055 inches in diameter by 0.142 inches in length (1.40mm x 3.60mm). The component has 2 terminations and is constructed using thin film technology.
Key features include intrinsic sulfur resistance and pulse withstanding capability. The SMM0204 series is ideal for automotive, telecommunication, industrial, and medical equipment fields where high reliability is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 220 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The operating temperature range is -55°C to 125°C.
The temperature coefficient is ±50ppm/°C.
It is in a MELF, 0204 package, specifically a Mini MELF.
Yes, this resistor is AEC-Q200 qualified.
