| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,504 pcs
|
1504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,472 pcs
|
1472 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

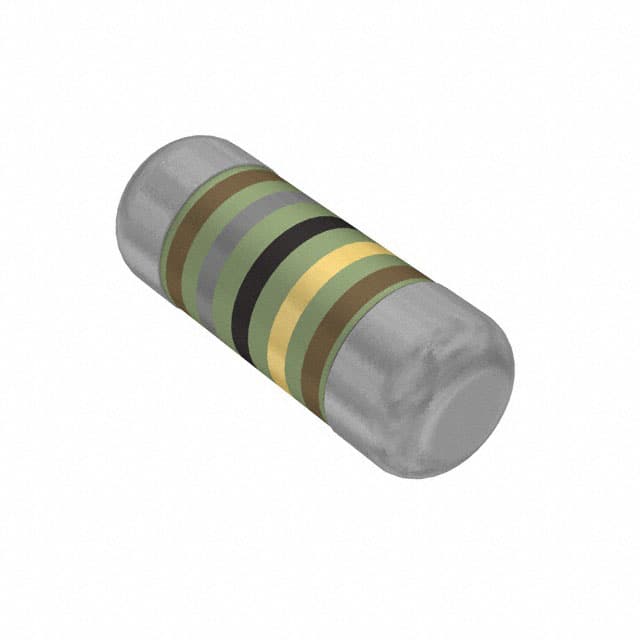

The Vishay Dale SMM02040C1809FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It offers a resistance value of 18 Ohms with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This resistor operates across a wide temperature range of -55°C to 155°C, with a permissible film temperature of up to 155°C. Its advanced metal film technology ensures excellent stability in various environmental conditions and provides intrinsic sulfur resistance. The component is AEC-Q200 qualified, making it suitable for automotive applications.
The Mini-MELF package (0204 DIN size) measures 1.40mm x 3.60mm, designed for surface mounting. With 2 terminations and a temperature coefficient of ±50ppm/°C, it provides reliable performance for critical circuits.
Key features include its AEC-Q200 qualification, advanced metal film technology, and pulse-withstanding capability. The low failure rate (FITobserved ≤ 0.05 x 10^-9/h) further underscores its reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 18 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is a Mini MELF package, DIN size 0204, suitable for surface mounting.
Yes, the resistor is AEC-Q200 qualified.
