| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,650 pcs
|
2650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

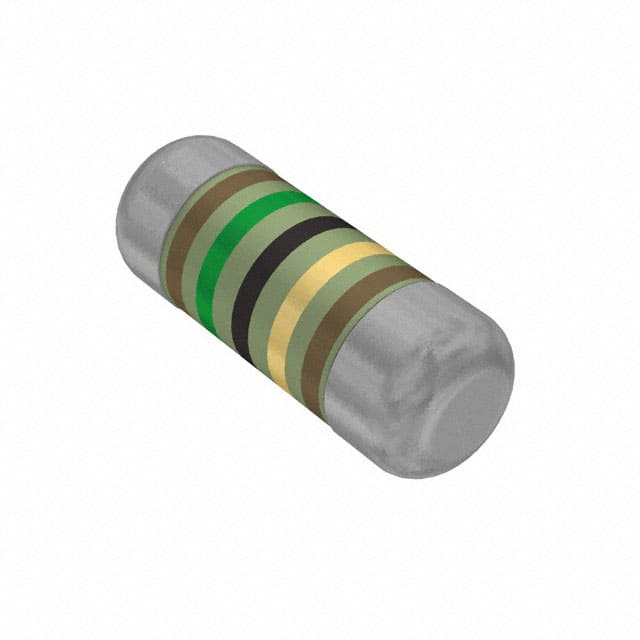

The Vishay Dale SMM02040C1509FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
This resistor offers a resistance value of 15 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is from -55°C to 155°C, with a maximum permissible film temperature of 155°C.
The component is housed in a MELF 0204 package, measuring 0.055 inches in diameter and 0.142 inches in length (1.40mm x 3.60mm). It has two terminations and is constructed using thin film technology. Key features include anti-sulfur properties, automotive AEC-Q200 compliance, and pulse withstanding capability.
Applications for this resistor include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical. The intrinsic sulfur resistance and excellent stability in various environmental conditions further enhance its suitability for robust designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
It is a MELF, 0204 package, also referred to as Mini MELF.
