| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

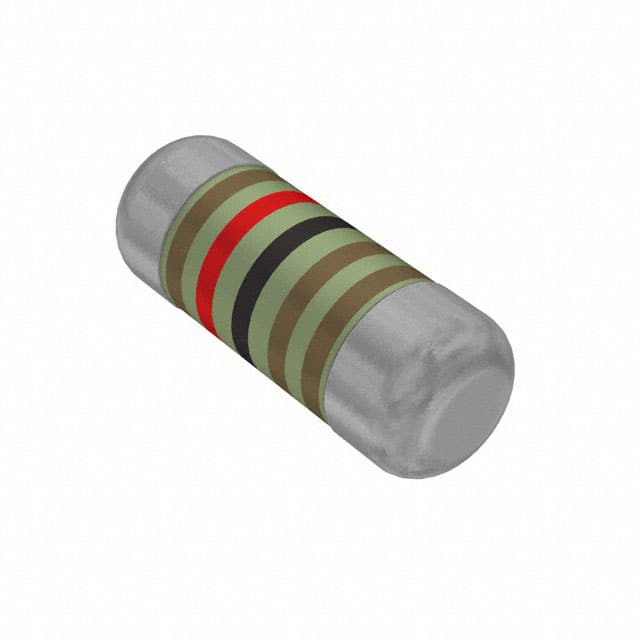

The Vishay Dale SMM02040C1201FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It features advanced metal film technology, providing a resistance value of 1.2 kΩ with a tight tolerance of ±1% and a temperature coefficient of ±50ppm/°C.
This resistor is rated for 0.25W of power and can operate in temperatures ranging from -55°C to 125°C. It is AEC-Q200 qualified, making it suitable for automotive applications, and offers intrinsic sulfur resistance for enhanced durability.
The Mini-MELF package, sized at 0.055" Dia x 0.142" L (1.40mm x 3.60mm), is designed for surface mounting. The component has 2 terminations and is constructed using thin film technology, ensuring excellent stability in various environmental conditions and a best-in-class pulse load capability.
Key specifications include a resistance range from 0.22 Ω to 10 MΩ and a maximum operating voltage of 200V. The permissible film temperature is 155 °C, and the insulation voltage is 300V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.2 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
The resistor is in a MELF, 0204 package, specifically a Mini MELF.
Yes, the resistor is AEC-Q200 qualified.
