| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,953 pcs
|
2953 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

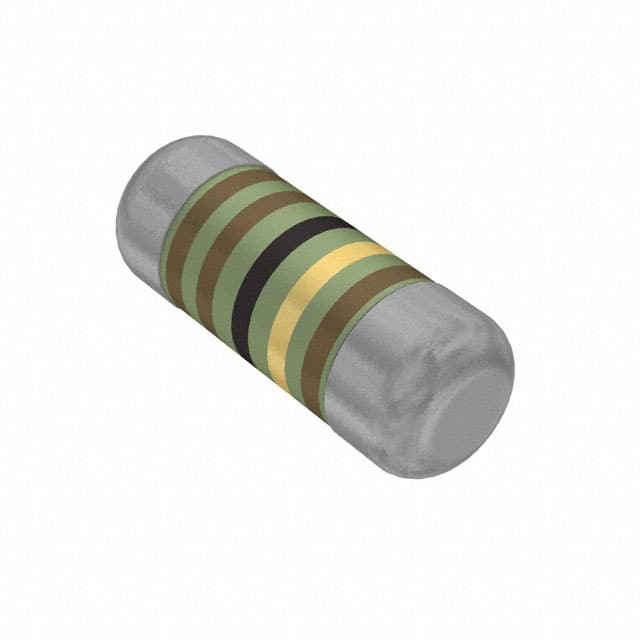

The Vishay Dale SMM02040C1109FB300 is a thin film Mini-MELF resistor from the SMM0204 series, engineered for demanding applications in automotive, industrial, and medical equipment where reliability and stability are paramount. This component features advanced metal film technology, providing an 11 Ohm resistance with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
With an operating temperature range of -55°C to 155°C and a temperature coefficient of ±50ppm/°C, this resistor ensures stable performance across various environmental conditions. It is AEC-Q200 qualified, indicating its suitability for automotive applications. The resistor has a maximum operating voltage of 200V and an insulation voltage of 300V.
The Mini-MELF package, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm), is suitable for surface mounting. Its intrinsic sulfur resistance and best-in-class pulse load capability further enhance its reliability in challenging environments. The failure rate is observed to be less than or equal to 0.05 x 10⁻⁹ per hour.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the SMM02040C1109FB300 resistor is 11 Ohms.
The tolerance of the SMM02040C1109FB300 resistor is ±1%.
The power rating of the SMM02040C1109FB300 resistor is 0.25W or 1/4W.
The temperature coefficient of the SMM02040C1109FB300 resistor is ±50ppm/°C.
The operating temperature range for the SMM02040C1109FB300 resistor is -55°C to 155°C.
The SMM02040C1109FB300 resistor is in a Mini MELF package, specifically the 0204 size.
Yes, the SMM02040C1109FB300 resistor is AEC-Q200 qualified.
