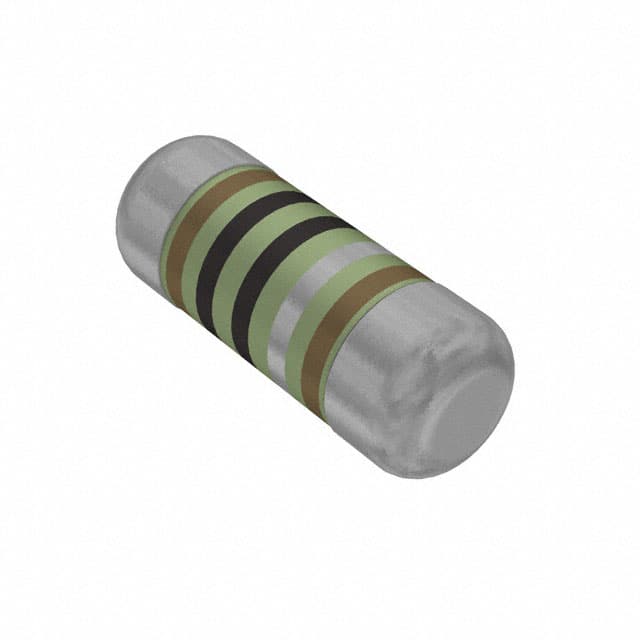

SMM02040C1008FB300 The Vishay Dale SMM02040C1008FB300 is a thin film resistor with 1 Ohm resistance and 1% tolerance. It is rated for 1/4W power and operates within a temperature range of -55°C to 125°C.
Mfr Part #:

SMM02040C1008FB300

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale SMM02040C1008FB300 is a thin film resistor with 1 Ohm resistance and 1% tolerance. It is rated for 1/4W power and operates within a temperature range of -55°C to 125°C.
✓ Total Stock: 4,010 pcs
$ Price Range: $0.02

SMM02040C1008FB300 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,060 pcs
On Request
2060 pcs On Request 1 On Request On Request 1120+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,950 pcs
On Request
1950 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMM02040C1008FB300 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Features
Number of Terminations
Operating Temperature
Operating Voltage
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
View Similar Products (0)

SMM02040C1008FB300 Description

Short technical summary and product information.

The Vishay Dale SMM02040C1008FB300 is a high-reliability thin film resistor designed for demanding applications. It features a resistance value of 1 Ohm with a tight tolerance of ±1% and a power rating of 1/4W.



This resistor boasts a temperature coefficient of ±50ppm/°C and an operating temperature range from -55°C to 125°C, ensuring stability across various environmental conditions. The component utilizes advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive and industrial use.



Packaged in a MELF 0204 (Mini MELF) case, the SMM02040C1008FB300 is designed for surface mount applications. Its construction provides excellent stability and pulse load capability, along with intrinsic sulfur resistance.



Key features include its advanced metal film technology, AEC-Q200 qualification, and intrinsic sulfur resistance. The resistor is ideal for applications requiring reliability and stability, such as automotive, telecommunication, industrial, and medical equipment.

SMM02040C1008FB300 Quick Information

Product Type: Resistor
Series: SMM0204
Canonical Name: Vishay Dale SMM02040C1008FB300 Thin Film Resistor, 1 Ohm, 1% Tolerance, 1/4W, ±50ppm/°C, -55°C to 125°C, MELF 0204 Package
Subcategory: Chip Resistor - Surface Mount

SMM02040C1008FB300 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMM02040C1008FB300 Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMM02040C1008FB300 Features

  • Thin film technology for high reliability.
  • 1 Ohm resistance with 1% tolerance.
  • 1/4W power rating.
  • ±50ppm/°C temperature coefficient.
  • AEC-Q200 qualified for automotive use.

SMM02040C1008FB300 Applications

  • Suitable for automotive applications.
  • Used in telecommunication systems.
  • Ideal for industrial equipment.
  • Applicable in medical devices.

SMM02040C1008FB300 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the SMM02040C1008FB300?

The resistance value is 1 Ohm.

What is the tolerance of the SMM02040C1008FB300 resistor?

The tolerance is ±1%.

What is the power rating of the SMM02040C1008FB300?

The power rating is 0.25W or 1/4W.

What is the temperature coefficient of this resistor?

The temperature coefficient is ±50ppm/°C.

What is the operating temperature range for the SMM02040C1008FB300?

The operating temperature range is -55°C to 125°C.

What type of package is the SMM02040C1008FB300 resistor in?

It is in a MELF, 0204 package, also referred to as Mini MELF.
