| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
692 pcs
|
692 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
455 pcs
|
455 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

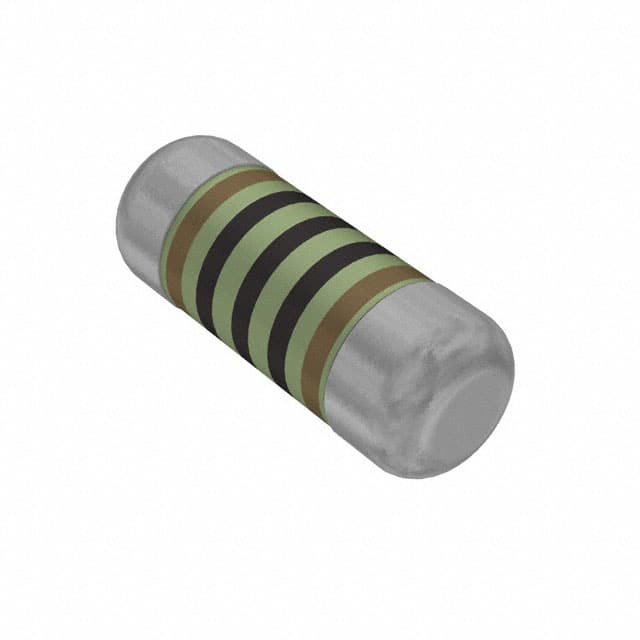

The Vishay Dale SMM02040C1000FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It offers a resistance value of 100 Ohms with a tight tolerance of ±1% and a power rating of 0.25W.
This resistor operates across a wide temperature range of -55°C to 155°C, with a maximum film temperature of 155°C. Its advanced metal film technology ensures excellent stability in various environmental conditions. The component is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment.
The Mini-MELF package has a size of 0.055" diameter by 0.142" length (1.40mm x 3.60mm). It features intrinsic sulfur resistance and best-in-class pulse load capability. The operating voltage is up to 200V DC/AC RMS.
Key specifications include a temperature coefficient of ±50ppm/°C and an insulation voltage of 300V for 1 minute. The SMM0204 series is ideal for modern electronics where reliability and stability are paramount.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It is a Mini MELF package, DIN size 0204.
Yes, this resistor is AEC-Q200 qualified.
