| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

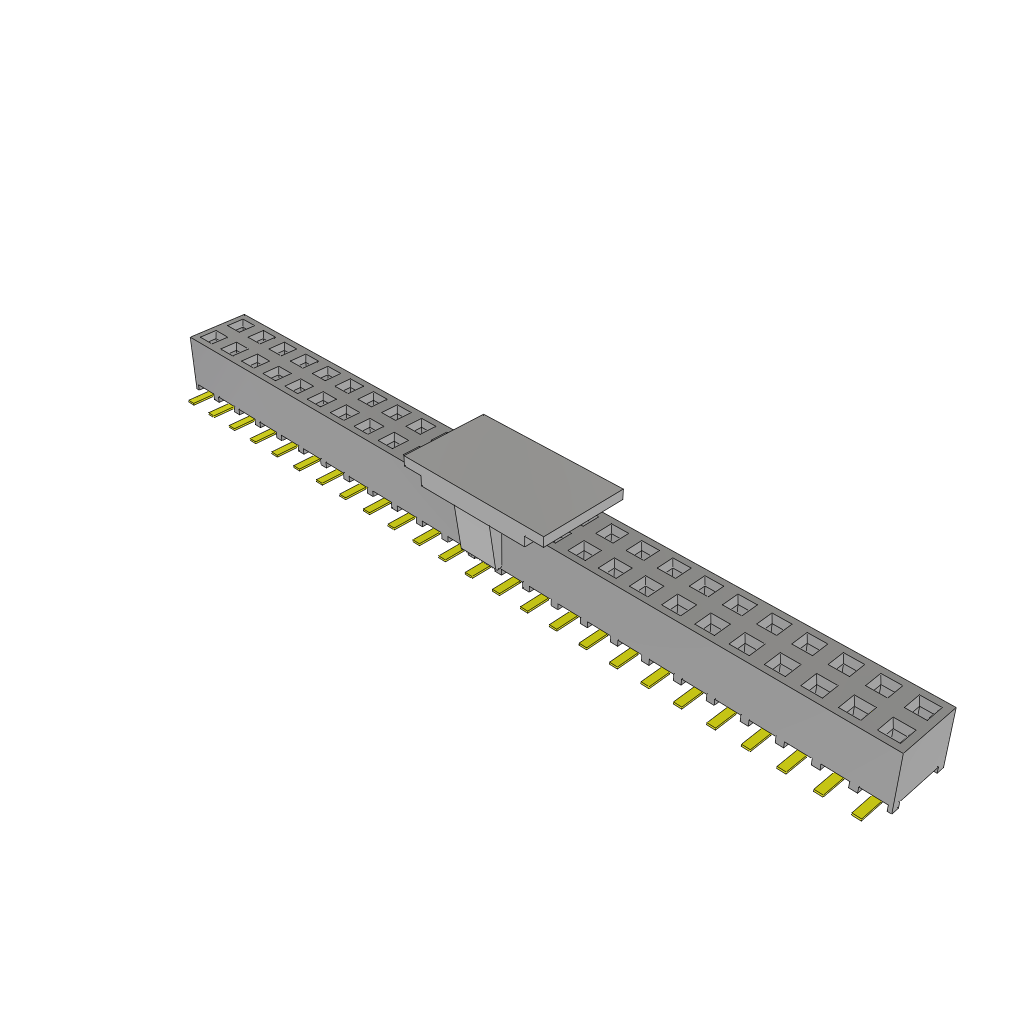

The Samtec Inc. SMM-125-02-S-D-P is a high-performance board-to-board receptacle connector designed for demanding applications. It features a 2.00 mm (.079") pitch and a 2-row configuration, offering a total of 50 positions. This connector supports high-speed data transfer with performance up to 8 Gbps, making it suitable for advanced electronic systems.
The SMM-125-02-S-D-P is designed for surface mount termination and includes features like Pick and Place compatibility for automated assembly. It has a current rating of 3.2 Amps per contact and a voltage rating of 350VAC. The Tiger Eye™ contact system ensures reliability, and the connector is constructed with materials rated UL94 V-0 for flammability.
Key specifications include a contact finish of Tin with 30µin thickness, an insulation height of 3.56mm, and an operating temperature range of -55°C to 125°C. The receptacle style and push-pull fastening type contribute to secure mating. This connector is part of Samtec's SMM series, known for its flexibility and high mating cycle capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
2.00mm (0.079").
3.2A per contact.
350VAC.
Surface Mount.
-55°C to 125°C.
Push-Pull.
