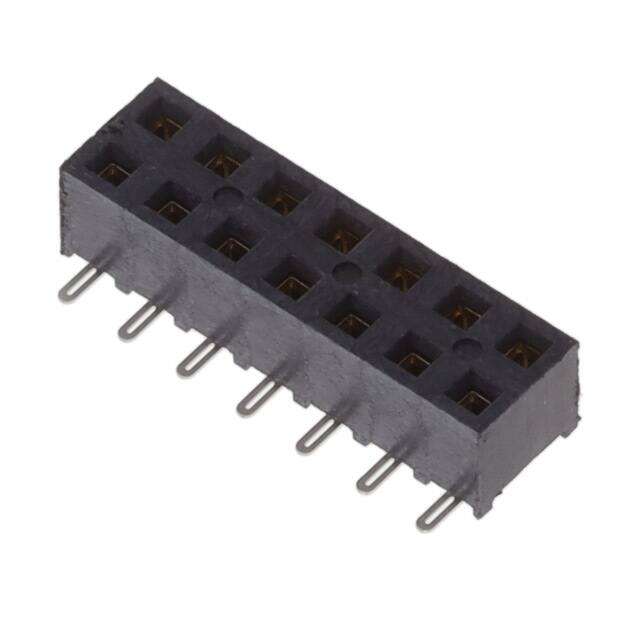

SMM-107-02-S-D-K-TR

The SMM-107-02-S-D-K-TR is a 14-position, 2-row receptacle connector from Samtec's Tiger Eye series. It features a 2.00mm pitch and is designed for surface mount solder termination. The female socket contacts are made of beryllium copper with 30µin gold plating, ensuring high reliability and durability. This connector is rated for 3.2A per contact and 350VAC, with an operating temperature range of -55°C to 125°C. It supports data rates up to 8 Gbps, making it suitable for high-speed signal applications. The push-pull fastening type and vertical orientation allow for straightforward board-to-board or cable connections. The black insulation is molded from UL94 V-0 rated material. This connector is supplied in Tape & Reel packaging with 1125 pieces per full reel, ideal for automated assembly processes. Key features include pick-and-place compatibility and a moisture sensitivity level of 1 (unlimited).
