| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Forward Current | |
| Height (Max) | |
| Lead Spacing | |
| Lens Size | |
| Lens Style | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage |

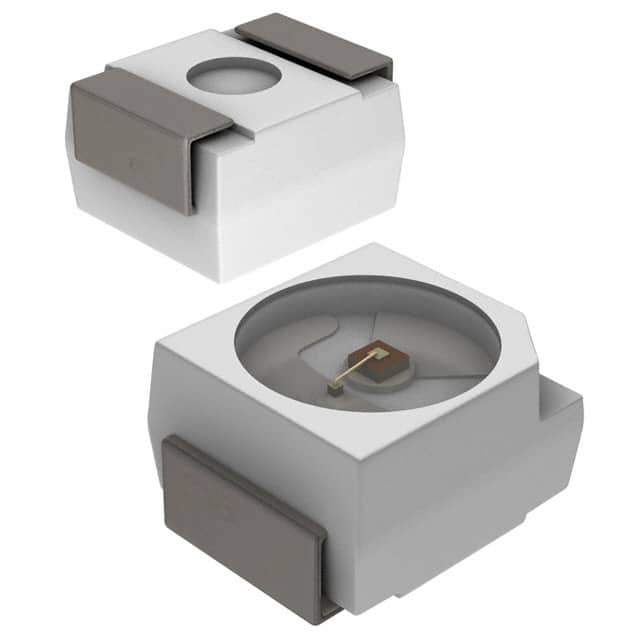

The ROHM Semiconductor SMLZN4WBGUW1 is a white surface mount chip LED. It is designed for indication purposes and features a reflector for enhanced light output.
Key electrical characteristics include a typical forward voltage of 3.3V at 20mA and a typical luminous intensity of 2400mcd. The LED offers a wide viewing angle of 120° in both X-Y and X'-Y' directions. Its chromaticity coordinates are typically (0.30, 0.28).
The device has a compact size of 2.8mm x 3.5mm x 2.05mm, making it suitable for space-constrained designs. It operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +100°C.
This LED is constructed with InGaN and features a built-in protection diode. It is packaged in a 2-PLCC format for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 3.3V at 20mA.
The typical luminous intensity is 2400mcd at 20mA.
The viewing angle is 120°.
The dimensions are 2.8mm x 3.5mm x 2.05mm.
The operating temperature range is -40°C to +85°C.
The MSL is Level 3.
