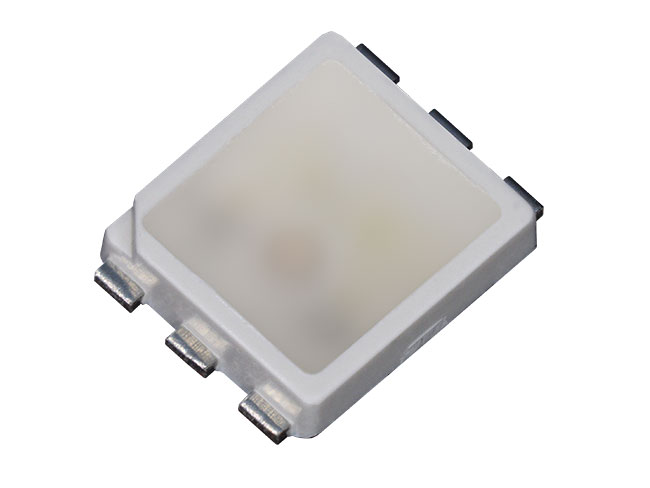

SMLVN6RGB1U1 The ROHM Semiconductor SMLVN6RGB1U1 is an RGB LED with independent color control. It features a compact 3528 SMD package and diffused lens.
Mfr Part #:

SMLVN6RGB1U1

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SMLVN6RGB1U1 is an RGB LED with independent color control. It features a compact 3528 SMD package and diffused lens.
✓ Total Stock: 5,255 pcs
$ Price Range: $0.06

SMLVN6RGB1U1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,600 pcs
On Request
4600 pcs On Request 1 On Request On Request 15+ On Request On Request
Rayichip ✓
Non-Authorised Inventory information
655 pcs
On Request
655 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMLVN6RGB1U1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Configuration
Current
Height
Height (Max)
Industrial Grade
Lens Color
Lens Style
Lens Transparency
Medical Grade
Military Grade
Millicandela Rating
Mounting Type
Peak Forward Current
Reverse Current
Storage Temperature
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

SMLVN6RGB1U1 Description

Short technical summary and product information.

The ROHM Semiconductor SMLVN6RGB1U1 is a multi-color LED designed for various indication and display applications. This component offers Red, Green, and Blue light emission, allowing for a wide range of color mixing possibilities. It is housed in a compact 3528 SMD package with a diffused lens for even light distribution.



Key electrical characteristics include a typical forward voltage of 2.1V for Red, 3.3V for Green, and 3.3V for Blue, each at a 20mA current rating. The dominant wavelengths are 624nm for Red, 527nm for Green, and 470nm for Blue. The LED has a typical luminous intensity of 700mcd for Red, 1200mcd for Green, and 400mcd for Blue at 20mA.



Designed for surface mounting, the SMLVN6RGB1U1 has dimensions of 3.10mm L x 2.80mm W and a maximum height of 0.60mm. Its operating temperature range is -40°C to +85°C, making it suitable for various environmental conditions. The LED is constructed with AlGaInP for red and InGaN for green and blue light emission.

SMLVN6RGB1U1 Quick Information

Product Type: LED
Canonical Name: ROHM Semiconductor SMLVN6RGB1U1 RGB LED
Subcategory: RGB LED

SMLVN6RGB1U1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMLVN6RGB1U1 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMLVN6RGB1U1 Features

  • RGB LED with independent color control.
  • Compact 3528 SMD surface mount package.
  • Typical forward voltages: 2.1V Red, 3.3V Green/Blue.
  • Typical luminous intensity: 700mcd Red, 1200mcd Green.
  • Wide operating temperature range: -40°C to +85°C.

SMLVN6RGB1U1 Applications

  • Ideal for indicator light applications.
  • Suitable for status displays.
  • Used in control panels.
  • Useful for color mixing designs.

SMLVN6RGB1U1 FAQs

6 frequently asked questions generated from this part’s specifications.
What are the typical forward voltages for the Red, Green, and Blue colors?

The typical forward voltage is 2.1V for Red, 3.3V for Green, and 3.3V for Blue, all at an IF of 20mA.

What are the dominant wavelengths for each color?

The dominant wavelengths are 624nm for Red, 527nm for Green, and 470nm for Blue.

What is the typical luminous intensity for each color?

The typical luminous intensity is 700mcd for Red, 1200mcd for Green, and 400mcd for Blue, all at an IF of 20mA.

What are the dimensions of the SMLVN6RGB1U1 LED?

The LED measures 3.10mm in length and 2.80mm in width, with a maximum height of 0.60mm.

What is the operating temperature range for this LED?

The operating temperature range is from -40°C to +85°C.

What is the MSL rating for this component?

The Moisture Sensitivity Level (MSL) is rated as 1.
