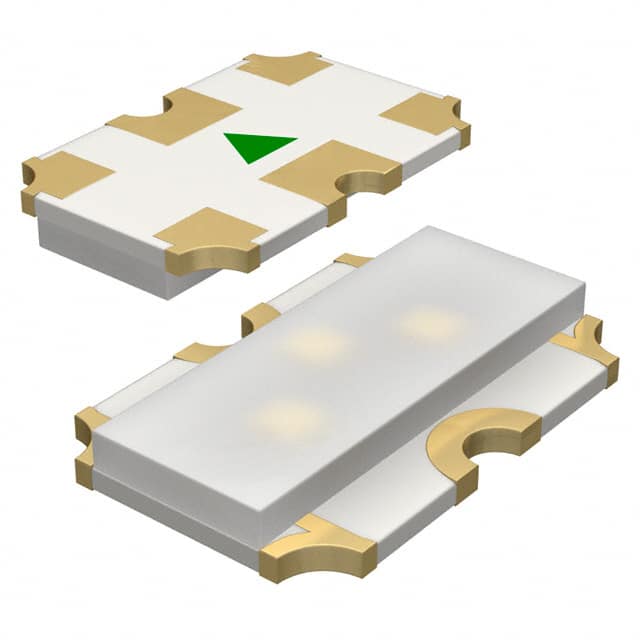

SMLP36RGB1W3 The ROHM Semiconductor SMLP36RGB1W3 is a Red, Green, Blue (RGB) LED in a 0604 package. It features a diffused white lens and surface mount capability.
Mfr Part #:

SMLP36RGB1W3

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SMLP36RGB1W3 is a Red, Green, Blue (RGB) LED in a 0604 package. It features a diffused white lens and surface mount capability.
✓ Total Stock: 9 pcs
$ Price Range: $0.06

SMLP36RGB1W3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMLP36RGB1W3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

SMLP36RGB1W3 Description

Short technical summary and product information.

This ROHM Semiconductor SMLP36RGB1W3 is a discrete LED component offering Red, Green, and Blue (RGB) light output. It is designed for surface mount applications and comes in a compact 0604 (1510 Metric) package.



The LED provides independent control for Red, Green, and Blue colors, with typical forward voltages of 2.1V for Red, 3.1V for Green, and 3V for Blue, all tested at 5mA. The dominant wavelengths are 624nm for Red, 527nm for Green, and 470nm for Blue. Luminous intensity ratings at 5mA are 28mcd for Red, 45mcd for Green, and 18mcd for Blue.



It features a white, diffused lens with a rectangle shape and flat top, measuring 1.50mm x 0.60mm. The overall component dimensions are 1.50mm in length by 1.00mm in width, with a maximum height of 0.25mm. The mounting type is surface mount.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status.

SMLP36RGB1W3 Quick Information

Product Type: LED Indication - Discrete
Series: PicoLED
Canonical Name: ROHM Semiconductor SMLP36RGB1W3 RGB LED
Subcategory: Discrete

SMLP36RGB1W3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMLP36RGB1W3 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMLP36RGB1W3 Features

  • Red, Green, Blue (RGB) LED.
  • Surface mount 0604 package.
  • Independent color configuration.
  • Diffused white lens.
  • Compact dimensions: 1.50mm x 1.00mm.

SMLP36RGB1W3 Applications

  • Indicator status lighting.
  • Color mixing applications.
  • Small electronic devices.
  • Control panel indicators.

SMLP36RGB1W3 FAQs

7 frequently asked questions generated from this part’s specifications.
What are the forward voltage ratings for the SMLP36RGB1W3 LED?

The typical forward voltage is 2.1V for Red, 3.1V for Green, and 3V for Blue, all tested at 5mA.

What are the dominant wavelengths for each color in the SMLP36RGB1W3 LED?

The dominant wavelengths are 624nm for Red, 527nm for Green, and 470nm for Blue.

What is the luminous intensity of the SMLP36RGB1W3 LED for each color?

The typical luminous intensity is 28mcd for Red, 45mcd for Green, and 18mcd for Blue, all tested at 5mA.

What package type is the SMLP36RGB1W3 LED available in?

The LED is available in the 0604 (1510 Metric) package.

What is the mounting type for the SMLP36RGB1W3 LED?

The mounting type is Surface Mount.

What are the dimensions of the SMLP36RGB1W3 LED?

The dimensions are 1.50mm L x 1.00mm W with a maximum height of 0.25mm.

Is the SMLP36RGB1W3 LED RoHS compliant?

The RoHS status is RoHS3 Compliant.
