| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Size | |
| Lens Style | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Wavelength |

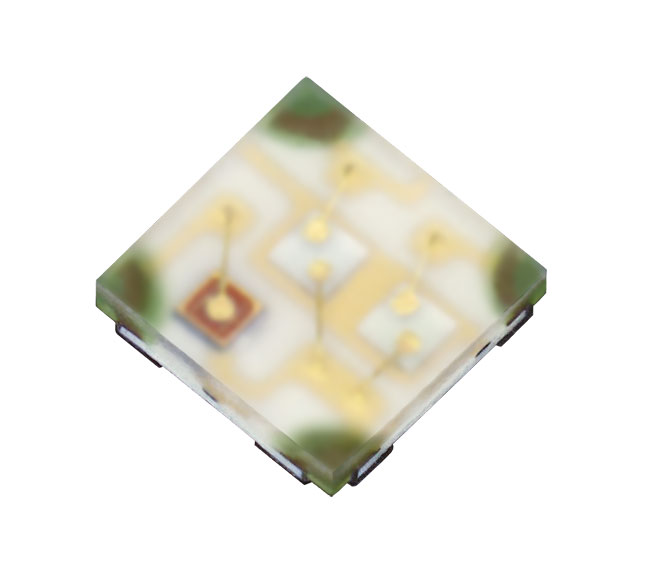

The ROHM Semiconductor SMLP34RGBN1W3 is a multi-color chip LED from the PICOLED-RGB series. This surface-mount component integrates Red, Green, and Blue light-emitting diodes within a single 0404 package.
Key electrical characteristics include typical forward voltages of 1.9V for Red, 2.9V for Green, and 2.95V for Blue, all at a typical forward current of 5mA. The typical luminous intensity ratings are 80mcd for Red, 220mcd for Green, and 60mcd for Blue. Dominant wavelengths are 624nm (Red), 527nm (Green), and 470nm (Blue), with a wide viewing angle of 130-135 degrees.
This LED is designed for applications requiring indicator lights, function displays, and switch backlighting. Its small size (1.00mm x 1.00mm) and surface-mount capability make it suitable for space-constrained designs. The operating temperature range is -40°C to +85°C, and storage temperature is -40°C to +100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ROHM SMLP34RGBN1W3 LED emits Red, Green, and Blue light.
The typical forward voltages are 1.9V for Red, 2.9V for Green, and 2.95V for Blue at 5mA.
The typical luminous intensity values are 80mcd for Red, 220mcd for Green, and 60mcd for Blue.
The SMLP34RGBN1W3 LED is a surface mount device in a 0404 (1010 Metric) package.
The operating temperature range for this LED is -40°C to +85°C.
