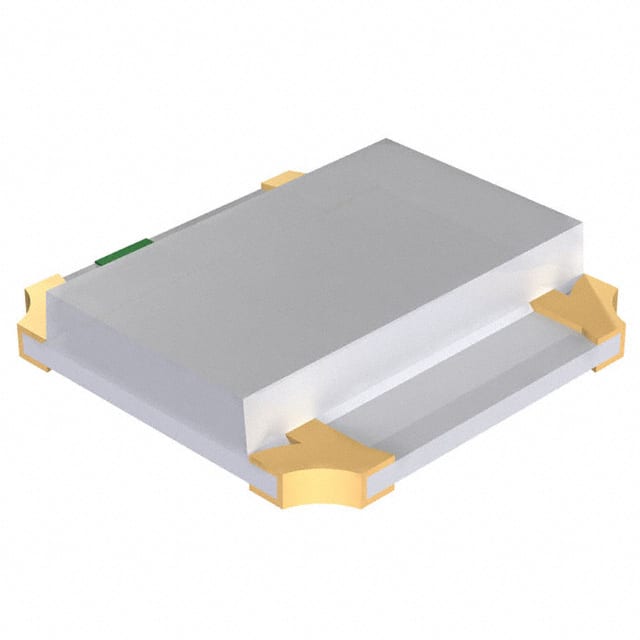

SMLP34RGB2W3 The ROHM Semiconductor SMLP34RGB2W3 is a diffused RGB LED in a PICOLED package. It offers Red, Green, and Blue light emission with distinct voltage and luminous intensity ratings for each color.
Mfr Part #:

SMLP34RGB2W3

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SMLP34RGB2W3 is a diffused RGB LED in a PICOLED package. It offers Red, Green, and Blue light emission with distinct voltage and luminous intensity ratings for each color.
✓ Total Stock: 1,820 pcs
$ Price Range: $0.06

SMLP34RGB2W3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
1,100 pcs
On Request
1100 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
720 pcs
On Request
720 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMLP34RGB2W3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

SMLP34RGB2W3 Description

Short technical summary and product information.

The ROHM Semiconductor SMLP34RGB2W3 is a compact RGB LED designed for surface mount applications. This component features a 0404 (1010 Metric) package with dimensions of 1.00mm L x 1.00mm W and a maximum height of 0.25mm.



It provides Red, Green, and Blue light emission, with a common anode configuration. The electrical specifications include a typical forward voltage of 2.1V for Red, 3.1V for Green, and 3V for Blue, each at a typical current rating of 5mA. The luminous intensity is rated at 35mcd for Red, 110mcd for Green, and 45mcd for Blue.



The LED has a diffused lens transparency and a white lens color. Its wavelength characteristics are 624nm for Red, 527nm for Green, and 470nm for Blue. The PICOLED supplier device package indicates its small form factor.



This LED is RoHS3 compliant and has an MSL rating of 1 Unlimited, indicating suitability for various manufacturing environments.

SMLP34RGB2W3 Quick Information

Product Type: RGB LED
Canonical Name: ROHM Semiconductor SMLP34RGB2W3 RGB LED
Subcategory: Discrete

SMLP34RGB2W3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMLP34RGB2W3 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMLP34RGB2W3 Features

  • Surface mount RGB LED in 0404 package.
  • Common anode configuration for color control.
  • Distinct voltage ratings for Red, Green, Blue.
  • Typical current rating of 5mA for all colors.
  • Diffused lens for even light distribution.

SMLP34RGB2W3 Applications

  • Indicator lights for status signaling.
  • Color mixing for custom lighting effects.
  • Small form factor electronic devices.
  • Instrumentation and control panels.

SMLP34RGB2W3 FAQs

5 frequently asked questions generated from this part’s specifications.
What are the voltage ratings for the SMLP34RGB2W3 LED?

The typical voltage ratings are 2.1V for Red, 3.1V for Green, and 3V for Blue.

What is the current rating for each color of the SMLP34RGB2W3 LED?

The typical current rating for Red, Green, and Blue is 5mA.

What is the luminous intensity of the SMLP34RGB2W3 LED for each color?

The typical luminous intensity is 35mcd for Red, 110mcd for Green, and 45mcd for Blue.

What is the package size of the SMLP34RGB2W3 LED?

The package size is 1.00mm L x 1.00mm W, specified as 0404 (1010 Metric).

What type of lens does the SMLP34RGB2W3 LED have?

It features a diffused lens with a white lens color.
