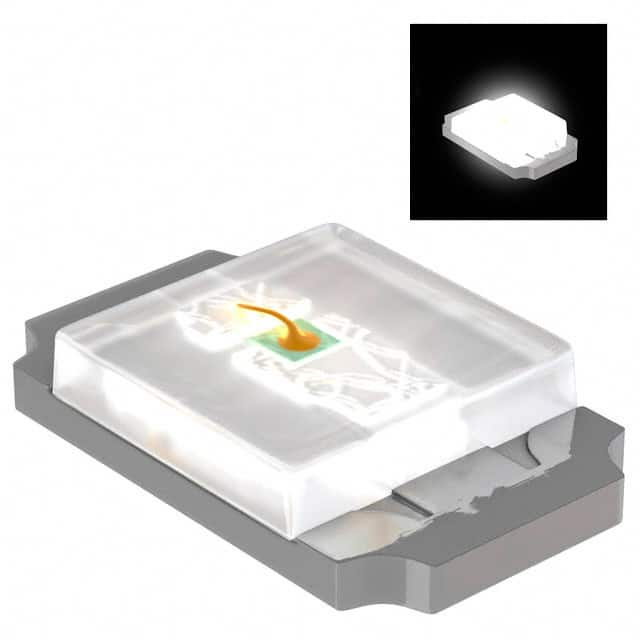

SMLP12WBC7W1 The ROHM Semiconductor SMLP12WBC7W1 is a white LED with a 0402 package size. It features a forward voltage of 2.9V and a dominant wavelength of 470nm.
Mfr Part #:

SMLP12WBC7W1

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SMLP12WBC7W1 is a white LED with a 0402 package size. It features a forward voltage of 2.9V and a dominant wavelength of 470nm.
✓ Total Stock: 830 pcs
$ Price Range: $0.06

SMLP12WBC7W1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
830 pcs
On Request
830 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMLP12WBC7W1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Emitting Color
Forward Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Supplier Device Package
Viewing Angle
Voltage
View Similar Products (0)

SMLP12WBC7W1 Description

Short technical summary and product information.

The ROHM Semiconductor SMLP12WBC7W1 is a compact surface-mount LED designed for indication purposes. It features a diffused white light output with a dominant wavelength of 470nm and a typical luminous intensity of 17mcd at 5mA.



This LED is housed in a 0402 (1006 metric) package measuring 1.00mm x 0.60mm with a height of 0.25mm. It operates within a temperature range of -40°C to 85°C and has a maximum power dissipation of 66mW.



Key electrical characteristics include a typical forward voltage of 2.9V and a maximum reverse current of 5µA at 5V. The viewing angle is 160 degrees, and the color coordinates are typically (0.30, 0.30).



This component is suitable for various electronic applications requiring small-form-factor visual indicators. Its surface-mount design facilitates automated assembly processes.

SMLP12WBC7W1 Quick Information

Product Type: LED
Canonical Name: ROHM Semiconductor SMLP12WBC7W1 White LED
Subcategory: Indication LED

SMLP12WBC7W1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMLP12WBC7W1 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMLP12WBC7W1 Features

  • Compact 0402 (1006 metric) SMD package.
  • White diffused light output.
  • Typical forward voltage of 2.9V.
  • Dominant wavelength of 470nm.
  • Wide 160-degree viewing angle.

SMLP12WBC7W1 Applications

  • Indicator lights for electronic devices.
  • Status signaling in control panels.
  • Small-form-factor visual cues.
  • Integration into compact assemblies.

SMLP12WBC7W1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SMLP12WBC7W1 LED?

The typical forward voltage is 2.9V at 5mA.

What is the luminous intensity of this LED?

The luminous intensity is 17mcd at 5mA.

What is the viewing angle of the SMLP12WBC7W1?

The viewing angle is 160 degrees.

What is the package type for this LED?

It is packaged in a 1006 (0402 metric) SMD package.

What is the maximum forward current for this LED?

The maximum forward current is 20mA.

What is the operating temperature range of the SMLP12WBC7W1?

It operates from -40°C to +85°C.
