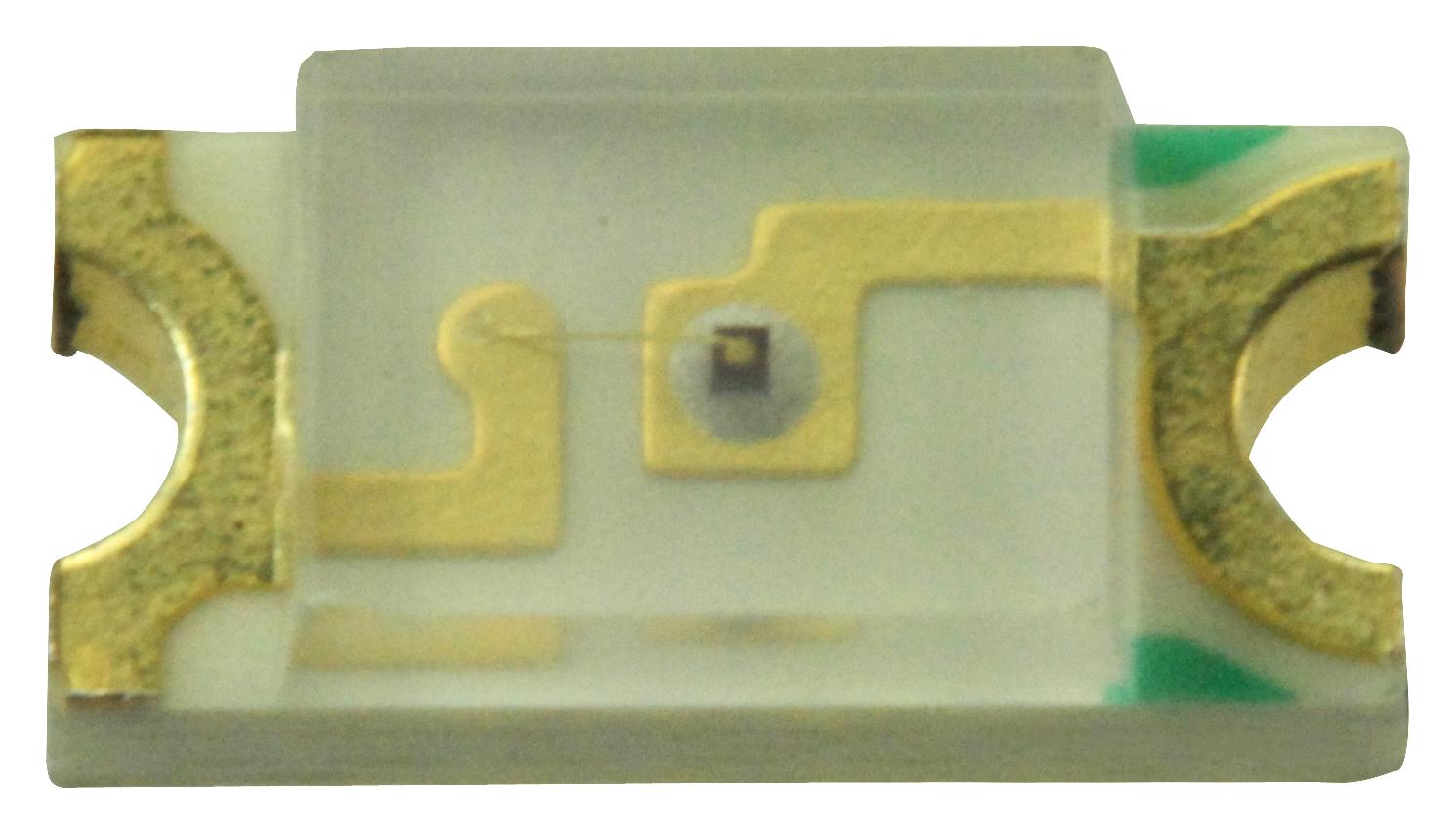

SMLLX1206SICTR This Lumex SMLLX1206SICTR is a surface mount red LED with a 632nm wavelength. It operates with a 2.0V forward voltage and a temperature range of -40°C to +65°C.
Mfr Part #:

SMLLX1206SICTR

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
This Lumex SMLLX1206SICTR is a surface mount red LED with a 632nm wavelength. It operates with a 2.0V forward voltage and a temperature range of -40°C to +65°C.
✓ Total Stock: 20 pcs
$ Price Range: $0.07

SMLLX1206SICTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMLLX1206SICTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Mounting Type
Operating Temperature
Reverse Voltage
Storage Temperature
Tape & Reel
Wavelength
View Similar Products (0)

SMLLX1206SICTR Description

Short technical summary and product information.

The Lumex SMLLX1206SICTR is a water-clear, surface-mount red LED designed for PCB mounting. It features a compact size of 3.2mm x 1.6mm and emits light with a wavelength of 632nm. This LED offers high reliability and efficiency, making it suitable for various electronic displays and indicator applications.



Key electrical specifications include a forward voltage of 2.0V and a maximum reverse voltage of 5.0V. The operating temperature range is from -40°C to +65°C, with a storage temperature range of -40°C to +70°C. The component complies with JEDEC Level 2 standards, ensuring quality and safety in its applications.



Designed for ease of integration into electronic circuits, this LED is ideal for consumer and industrial lighting projects. Its water-clear lens provides uniform illumination. The surface-mount design facilitates automated assembly processes.

SMLLX1206SICTR Quick Information

Product Type: LED
Series: SM-LX
Canonical Name: Lumex SMLLX1206SICTR Surface Mount Red LED
Subcategory: Surface Mount LED

SMLLX1206SICTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMLLX1206SICTR Estimated Pricing

Qty Low High
1+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMLLX1206SICTR Features

  • Surface mount red LED.
  • 632nm wavelength for red light emission.
  • 2.0V typical forward voltage.
  • Operates from -40°C to +65°C.
  • JEDEC Level 2 compliant.

SMLLX1206SICTR Applications

  • Used for status indication on PCBs.
  • Suitable for front panel indicators.
  • Ideal for low-power visual signaling.
  • Can be used in consumer electronics.
  • Applicable in industrial control panels.

SMLLX1206SICTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the wavelength of the Lumex SMLLX1206SICTR LED?

The wavelength of the Lumex SMLLX1206SICTR LED is 632nm.

What is the forward voltage for the SMLLX1206SICTR LED?

The typical forward voltage for the SMLLX1206SICTR LED is 2.0V.

What is the operating temperature range for this Lumex LED?

The operating temperature range for the Lumex SMLLX1206SICTR LED is -40°C to +65°C.

What are the dimensions of the SMLLX1206SICTR surface mount LED?

The dimensions of the SMLLX1206SICTR surface mount LED are 3.2mm x 1.6mm.

Is the Lumex SMLLX1206SICTR RoHS compliant?

The RoHS status for the Lumex SMLLX1206SICTR is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SMLLX1206SICTR?

The Moisture Sensitivity Level (MSL) for the SMLLX1206SICTR is 1 Unlimited.
