| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Wavelength |

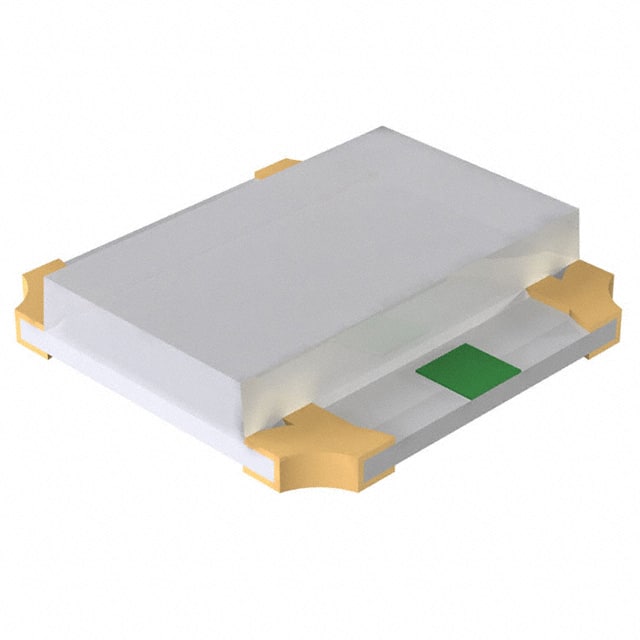

The ROHM Semiconductor SML-P24MUWT86 is a discrete dual color LED designed for indication purposes. It emits both green and red light, with nominal forward voltages of 2.2V for green and 2.1V for red, both at a 20mA current rating.
This LED features a diffused lens and a rectangle with a flat top style. Its compact size of 1.00mm L x 1.00mm W, with a height of 0.25mm, makes it suitable for space-constrained applications. The package type is 0404 (1010 Metric), and it is designed for surface mounting.
Key specifications include a green wavelength of 572nm and a red wavelength of 620nm. The luminous intensity is rated at 21mcd for green and 52mcd for red. The lens size is 1.00mm x 0.60mm. The configuration is independent, allowing for separate control of the green and red LEDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SML-P24MUWT86 LED emits both green and red light.
The forward voltage is 2.2V for green and 2.1V for red.
The current rating is 20mA for both green and red light.
The LED measures 1.00mm in length and 1.00mm in width, with a maximum height of 0.25mm.
The package type is 0404 (1010 Metric).
The SML-P24MUWT86 LED is designed for surface mounting.
