SML-P11MTT86 The ROHM Semiconductor SML-P11MTT86 is a Yellow-Green LED in a compact 0402 package. It offers a typical forward voltage of 1.9V and a dominant wavelength of 569nm.
Mfr Part #:

SML-P11MTT86

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SML-P11MTT86 is a Yellow-Green LED in a compact 0402 package. It offers a typical forward voltage of 1.9V and a dominant wavelength of 569nm.
✓ Total Stock: 400 pcs
$ Price Range: $0.06

SML-P11MTT86 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request 1615 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-P11MTT86 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Reverse Voltage
Storage Temperature
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

SML-P11MTT86 Description

Short technical summary and product information.

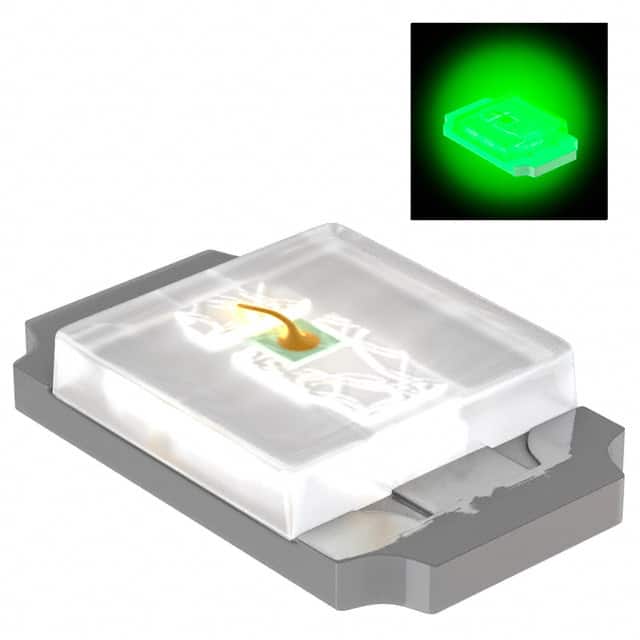

The ROHM Semiconductor SML-P11MTT86 is a discrete LED designed for indication applications. It features an ultra-compact, thin size of 1.0mm x 0.6mm, making it suitable for space-constrained designs.



This LED emits a Yellow-Green light with a dominant wavelength of 569nm. It operates with a typical forward voltage of 1.9V at a test current of 1mA, providing a typical luminous intensity of 2.1mcd. The absolute maximum reverse voltage is rated at 4V.



Packaged in a 0402 (1006 Metric) surface-mount form factor, the SML-P11MTT86 is designed for automated assembly processes. Its operating temperature range is -40°C to +85°C, and storage temperature range is -40°C to +100°C. The lens style is square with a flat top, and the lens transparency is clear.

SML-P11MTT86 Quick Information

Product Type: LED
Series: PicoLED™
Canonical Name: ROHM Semiconductor SML-P11MTT86 Yellow-Green LED
Subcategory: Discrete LED

SML-P11MTT86 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 3
REACH Status: REACH Unaffected

SML-P11MTT86 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-P11MTT86 Features

  • Ultra compact 1.0x0.6mm size.
  • Yellow-Green emitting color.
  • Typical 1.9V forward voltage.
  • 569nm dominant wavelength.
  • 2.1mcd typical luminous intensity.

SML-P11MTT86 Applications

  • Ideal for small indicator lights.
  • Suitable for portable electronic devices.
  • Used in status indication panels.
  • Applications requiring compact LEDs.

SML-P11MTT86 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the SML-P11MTT86 LED?

The typical forward voltage for the SML-P11MTT86 LED is 1.9V at a forward current of 1mA.

What is the dominant wavelength of the SML-P11MTT86 LED?

The dominant wavelength of the SML-P11MTT86 LED is 569nm.

What is the luminous intensity of the SML-P11MTT86 LED?

The typical luminous intensity of the SML-P11MTT86 LED is 2.1mcd at a forward current of 1mA.

What package type is the SML-P11MTT86 LED supplied in?

The SML-P11MTT86 LED is supplied in a 0402 (1006 Metric) surface-mount package.

What is the operating temperature range for the SML-P11MTT86 LED?

The operating temperature range for the SML-P11MTT86 LED is -40°C to +85°C.
