| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 435 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

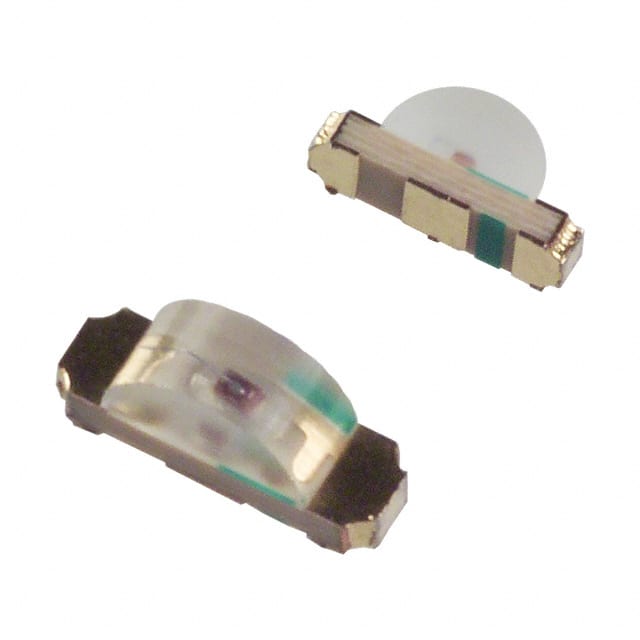

This Lumex, Inc. SML-LXR85SRC-TR is a discrete LED indicator with a red color output. It is designed for surface mount applications with a right-angle orientation.
The LED operates with a typical forward voltage of 1.7V and a test current of 20mA, emitting light at a peak wavelength of 660nm. It offers a wide viewing angle of 160° and a luminous intensity of 30mcd.
The component comes in a compact 2-SMD, No Lead package measuring 3.20mm in length and 1.50mm in width. The lens is rectangular with a domed top, measuring 2.00mm x 1.00mm, and is clear and colorless. The maximum height of the component is 1.00mm.
This LED is suitable for various indication purposes where a red light output is required in a surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the SML-LXR85SRC-TR LED is 1.7V.
The peak wavelength of the SML-LXR85SRC-TR LED is 660nm.
The SML-LXR85SRC-TR LED has a viewing angle of 160°.
The luminous intensity rating for the SML-LXR85SRC-TR LED is 30mcd.
The SML-LXR85SRC-TR LED is supplied in a Tape & Reel (TR) package.
The SML-LXR85SRC-TR LED is designed for surface mounting with a right-angle orientation.
