| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Reverse Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

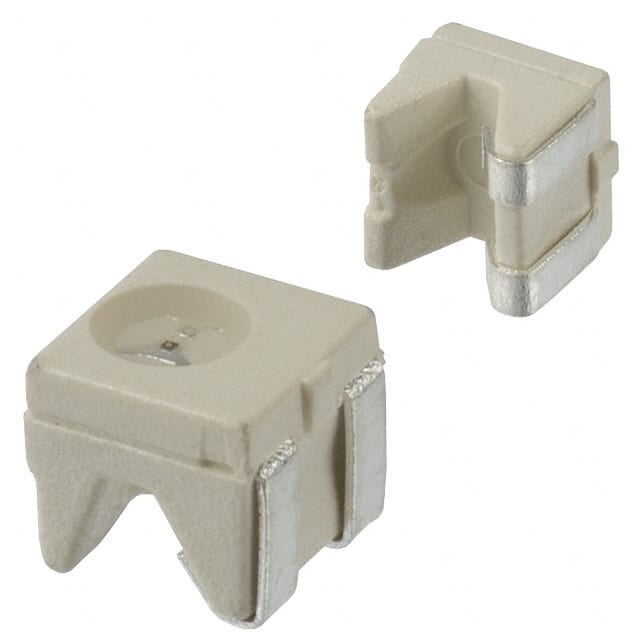

This Lumex SML-LXR44SYC-TR LED emits yellow light with a peak wavelength of 590nm. It is designed for surface mounting with a right-angle orientation and comes in a compact 2-SMD, Boomerang package.
The LED has a typical forward voltage of 2.0V and a maximum forward current of 20mA, producing a typical luminous intensity of 200mcd. The viewing angle is 150 degrees. The lens is clear and colorless, with a round, flat-top shape.
Key electrical characteristics include a typical forward voltage of 2.0V at 20mA and a peak wavelength of 590nm. The typical luminous intensity is 200mcd at 20mA. The operating temperature range is -40°C to +85°C.
This component is suitable for various indication applications where a yellow light source is required in a compact surface-mount form factor. The right-angle mounting allows for specific board layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LED operates at a typical forward current of 20mA.
The typical forward voltage is 2.0V at 20mA.
The viewing angle is 120 degrees.
It comes in a 2-SMD, boomerang package with surface mount, right-angle mounting.
The LED emits yellow light.
The maximum power dissipation is 75 mW.
The operating temperature range is -40°C to +85°C.
