| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

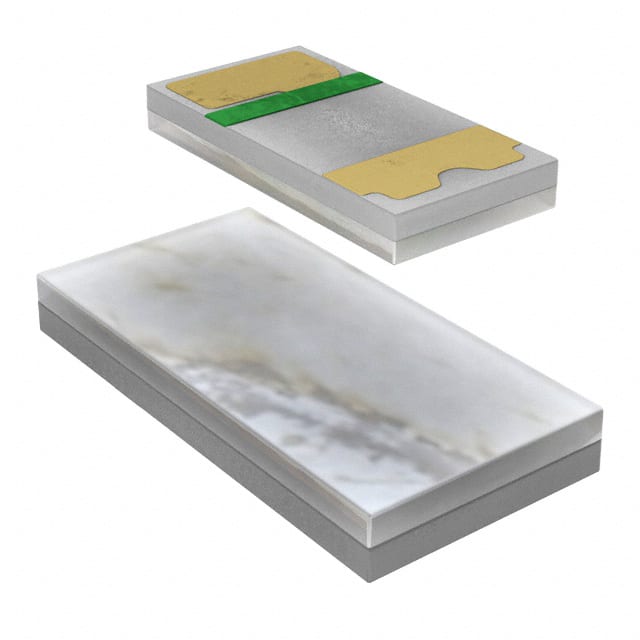

This Lumex Opto/Components Inc. SML-LXFP0603USBCTR is a discrete blue LED with a clear, colorless lens. It is designed for surface mount applications and comes in a compact 0603 (1608 Metric) package.
The LED features a typical forward voltage of 3V and a typical forward current of 5mA, delivering a luminous intensity of 50mcd. Its blue light has a wavelength of 470nm, and it offers a wide viewing angle of 130°.
The dimensions of the LED are 1.60mm in length and 0.80mm in width, with a maximum height of 0.20mm. The lens itself measures 1.60mm x 0.80mm. This component is suitable for various indication applications where a small, surface-mountable blue LED is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 3V.
The typical forward current is 5mA.
The typical luminous intensity is 50mcd.
The package type is 0603 (1608 Metric) for surface mounting.
The LED is blue.
