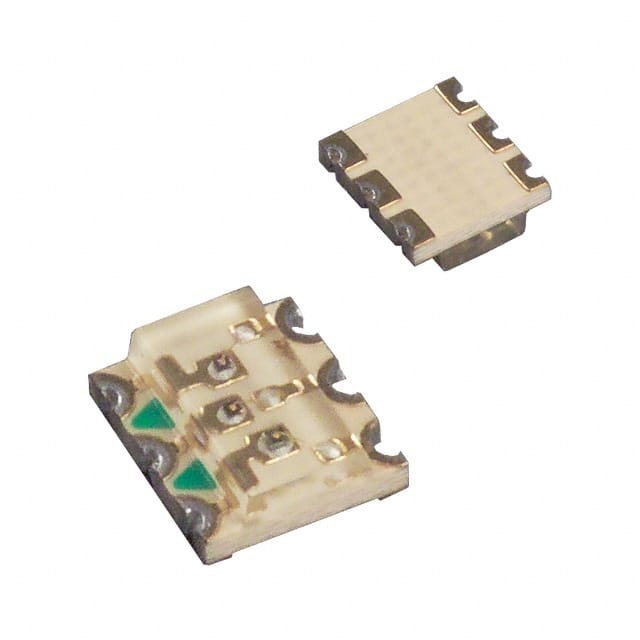

SML-LX3632SISUGSBC The Lumex Opto/Components Inc. SML-LX3632SISUGSBC is a Surface Mount RGB LED. It offers Red, Green, and Blue light emission with specific voltage and current ratings for each color.
Mfr Part #:

SML-LX3632SISUGSBC

Available from 2 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex Opto/Components Inc. SML-LX3632SISUGSBC is a Surface Mount RGB LED. It offers Red, Green, and Blue light emission with specific voltage and current ratings for each color.
✓ Total Stock: 1,099 pcs
$ Price Range: $0.06

SML-LX3632SISUGSBC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
999 pcs
On Request
999 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-LX3632SISUGSBC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lead Style
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SML-LX3632SISUGSBC Description

Short technical summary and product information.

This Lumex Opto/Components Inc. SML-LX3632SISUGSBC is a discrete RGB LED designed for surface mount applications. The LED features independent control for Red, Green, and Blue light emission, providing versatile color mixing capabilities.



Key electrical specifications include a nominal forward voltage of 2V for Red, 2.2V for Green, and 3.5V for Blue, with a consistent 20mA current rating for each color. The luminous intensity is rated at 75mcd for Red, 60mcd for Green, and 50mcd for Blue. The LED emits light at wavelengths of 636nm (Red), 574nm (Green), and 430nm (Blue), with a wide viewing angle of 120°.



Mechanically, the component is housed in a 3632 package, measuring 3.60mm in length and 3.20mm in width, with a maximum height of 1.10mm. The lens style is described as Rectangle with Flat Top, colorless, and clear, with a lens size of 1.90mm x 3.60mm. The package type is 6-SMD, No Lead, suitable for surface mounting.



Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited. REACH status is unaffected.

SML-LX3632SISUGSBC Quick Information

Product Type: RGB LED
Canonical Name: Lumex Opto/Components Inc. SML-LX3632SISUGSBC RGB LED
Subcategory: Discrete LED

SML-LX3632SISUGSBC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SML-LX3632SISUGSBC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-LX3632SISUGSBC Features

  • Surface mount RGB LED.
  • Independent Red, Green, Blue emitters.
  • Nominal voltages: 2V, 2.2V, 3.5V.
  • Wide 120° viewing angle.
  • Compact 3.60mm x 3.20mm size.

SML-LX3632SISUGSBC Applications

  • Ideal for color mixing applications.
  • Suitable for indicator and status lighting.
  • Used in electronic equipment displays.
  • Compact designs requiring multi-color LEDs.

SML-LX3632SISUGSBC FAQs

6 frequently asked questions generated from this part’s specifications.
What colors does the Lumex SML-LX3632SISUGSBC LED emit?

The LED emits Red, Green, and Blue light.

What are the nominal operating voltages for each color of the SML-LX3632SISUGSBC LED?

The nominal operating voltages are 2V for Red, 2.2V for Green, and 3.5V for Blue.

What is the current rating for the SML-LX3632SISUGSBC LED?

The current rating is 20mA for Red, 20mA for Green, and 20mA for Blue.

What is the luminous intensity of the SML-LX3632SISUGSBC LED for each color?

The luminous intensity is 75mcd for Red, 60mcd for Green, and 50mcd for Blue.

What is the package type for the SML-LX3632SISUGSBC LED?

The package type is 6-SMD, No Lead, and the mounting type is Surface Mount.

What are the dimensions of the SML-LX3632SISUGSBC LED?

The dimensions are 3.60mm in length and 3.20mm in width, with a maximum height of 1.10mm.
