| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

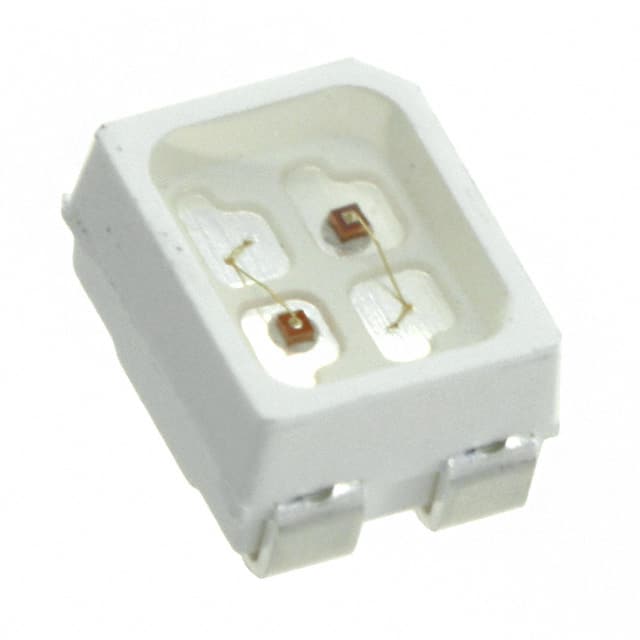

This Lumex Opto/Components Inc. SML-LX2835IGC-TR is a discrete LED component designed for indication purposes. It provides both Green and Red light outputs, with independent configurations for each color. The LED operates at a forward voltage of 2.2V for Green and 2V for Red, with a nominal forward current of 20mA for both.
Key electrical characteristics include a luminous intensity of 25mcd for both Green and Red, and wavelengths of 565nm for Green and 635nm for Red. The viewing angle is rated at 120 degrees, and the lens is clear and colorless.
Mechanically, the component is housed in a 4-SMD, J-Lead package with a supplier package size of 2835. It has a compact footprint measuring 3.20mm in length and 2.70mm in width, with a maximum height of 1.80mm. The mounting type is surface mount, making it suitable for automated assembly processes.
The SML-LX2835IGC-TR is RoHS3 compliant and has an MSL rating of 1, indicating unlimited usability under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SML-LX2835IGC-TR LED emits both Green and Red light.
The forward voltage is 2.2V for Green and 2V for Red.
The typical forward current is 20mA for both Green and Red.
The luminous intensity is 25mcd for both Green and Red.
The viewing angle is 120 degrees.
The LED is in a 4-SMD, J-Lead package.
The SML-LX2835IGC-TR LED is RoHS3 Compliant.
