| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

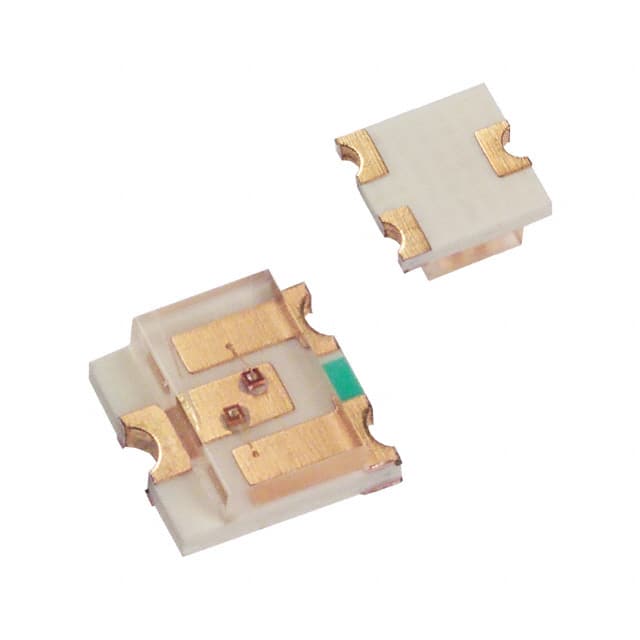

This Lumex Opto/Components Inc. SML-LX15IC-TR is a discrete red LED suitable for various indication applications. It comes in a compact SOT-23 surface mount package, measuring 3.00mm L x 3.00mm W with a maximum height of 1.00mm.
The LED features a clear, colorless lens with a rectangle shape and flat top, measuring 2.00mm x 3.00mm. It operates with a typical forward voltage of 2V and a forward current of 20mA, producing a luminous intensity of 10mcd at a wavelength of 635nm. The viewing angle is a wide 140°.
Designed for surface mounting, this component is ideal for space-constrained electronic assemblies. Its standard configuration and clear lens make it suitable for general-purpose visual indicators where a red light output is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LED is red.
The typical forward voltage is 2V.
The typical forward current is 20mA.
The viewing angle is 140°.
It is supplied in a SOT-23 package.
It is designed for surface mount.
