| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,265 pcs
|
1265 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Current | |
| Halogen Free | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

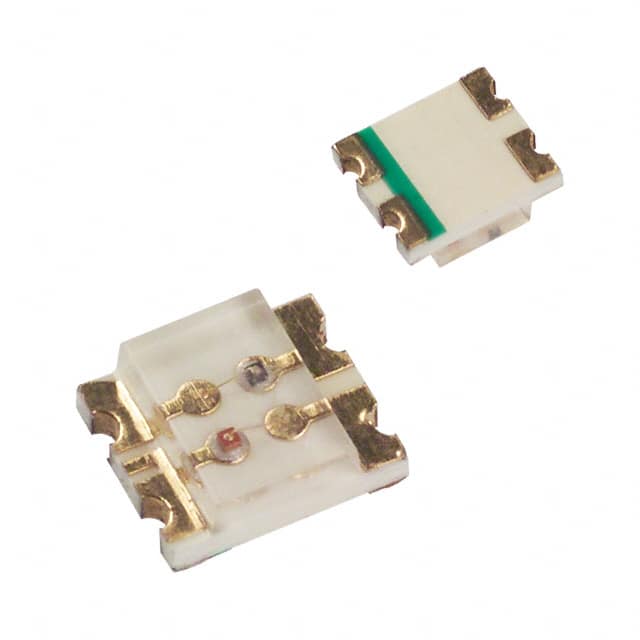

This Lumex SML-LX1210SRSGC-TR LED offers dual-color functionality, providing both Red and Green light emission from a single component. It is designed for surface mount applications and comes in a 1210 (3225 Metric) package with dimensions of 3.20mm L x 2.70mm W and a maximum height of 1.10mm.
The LED features a water-clear lens and a rectangle with a flat top lens style. For Red emission, it has a typical peak wavelength of 660nm and a forward voltage of 1.7V to 2.4V at 20mA. For Green emission, the typical peak wavelength is 570nm with a forward voltage of 2.1V to 2.8V at 20mA. Both colors offer a typical luminous intensity of 15mcd (Red) and 12mcd (Green) respectively, with a wide viewing angle of 140°.
Absolute maximum ratings include a peak forward current of 80mA for Red and 60mA for Green, a forward current of 40mA (Red) and 30mA (Green), and a reverse voltage of 5V. Power dissipation is rated at 96mW for Red and 84mW for Green. The operating temperature range is -40°C to +85°C, and storage temperature is -40°C to +90°C. It is supplied on a tape and reel with 3000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This LED emits both Red and Green light.
The package type is 1210 (3225 Metric), suitable for surface mounting.
The typical forward voltage is 1.7V for Red and 2.1V for Green, both at 20mA.
The operating temperature range is -40°C to +85°C.
Yes, this LED is RoHS3 Compliant.
