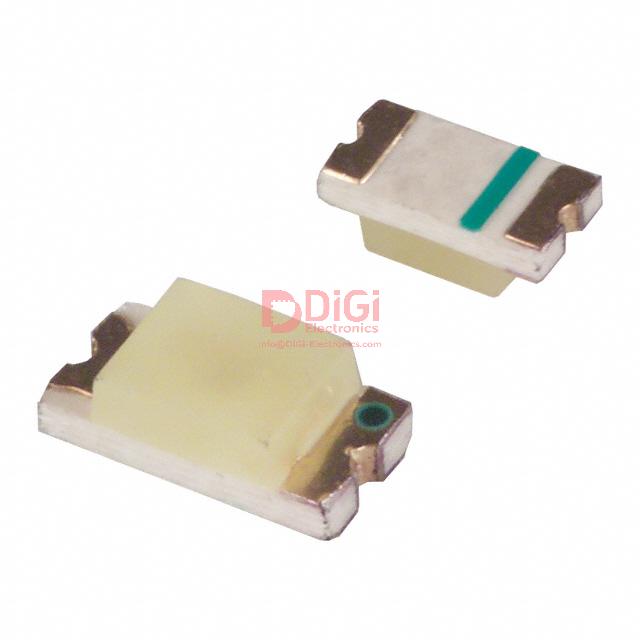

SML-LX1206GC The Lumex Opto/Components Inc. SML-LX1206GC-TR is a green, clear LED in a 1206 SMD package. It operates at a typical forward voltage of 2.2V.
Mfr Part #:

SML-LX1206GC

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex Opto/Components Inc. SML-LX1206GC-TR is a green, clear LED in a 1206 SMD package. It operates at a typical forward voltage of 2.2V.
✓ Total Stock: 20 pcs
$ Price Range: $0.07

SML-LX1206GC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-LX1206GC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Forward Voltage
Lens Color
Lens Size
Lens Style
Lens Transparency
Mounting Type
Supplier Device Package
Tape & Reel
Viewing Angle
View Similar Products (0)

SML-LX1206GC Description

Short technical summary and product information.

This Lumex Opto/Components Inc. SML-LX1206GC-TR is a discrete green LED designed for surface mount applications. It features a clear, colorless lens with a rectangular shape and a flat top, measuring 2.00mm x 1.50mm.



The LED operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a luminous intensity of 10mcd. It offers a wide viewing angle of 160 degrees and has a peak wavelength of 565nm.



The component is housed in a 1206 (3216 Metric) package, suitable for surface mounting. The product status is active, and it is supplied on tape and reel.

SML-LX1206GC Quick Information

Product Type: LED
Series: SML-LX1206
Canonical Name: Lumex Opto/Components Inc. SML-LX1206GC-TR Green Clear LED, 1206 SMD
Subcategory: LED

SML-LX1206GC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SML-LX1206GC Estimated Pricing

Qty Low High
1+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-LX1206GC Features

  • Green clear LED in 1206 SMD package.
  • Typical forward voltage of 2.2V.
  • 10mcd luminous intensity.
  • Wide 160° viewing angle.
  • Surface mountable on tape and reel.

SML-LX1206GC Applications

  • Use as status indicator in portable devices.
  • Suitable for backlighting small displays.
  • Ideal for general purpose panel indication.
  • For low power indicator lights.

SML-LX1206GC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SML-LX1206GC?

The typical forward voltage is 2.2V at 20mA test current.

What is the package size of the SML-LX1206GC?

It comes in a 1206 (3216 metric) surface mount package.

What color does the SML-LX1206GC emit?

It emits green light with a peak wavelength of 565nm.

What is the luminous intensity of this LED?

The typical luminous intensity is 10mcd.

What is the viewing angle?

The viewing angle is 160°.

What type of lens does it have?

It has a colorless clear rectangular flat top lens measuring 2.00mm x 1.50mm.

How is this LED mounted?

It is designed for surface mount mounting.
