| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Halogen Free | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

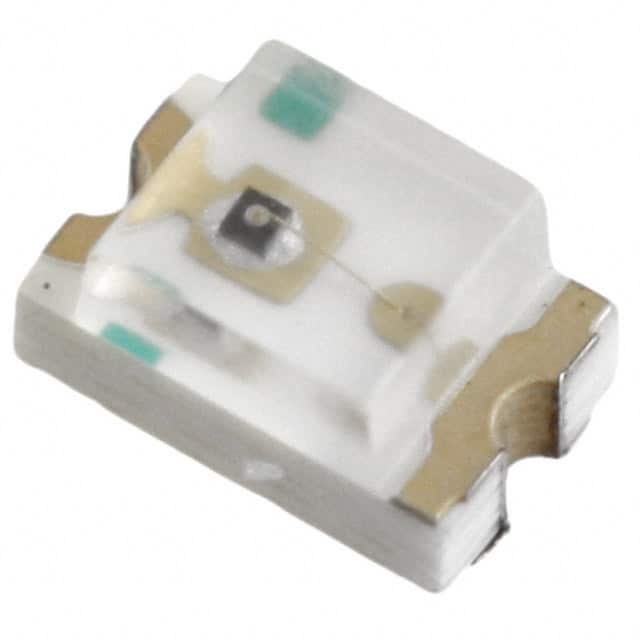

This Lumex SML-LX0805USBC-TR LED is designed for surface mount applications, featuring a compact 0805 (2012 Metric) package. The component emits blue light with a peak wavelength of 470nm and a typical luminous intensity of 25mcd at 20mA forward current. Its water clear lens provides a wide 140° viewing angle.
The LED operates with a typical forward voltage of 3.5V and has an absolute maximum forward current rating of 100mA. The power dissipation is rated at 120mW. It is suitable for operation within a temperature range of -40°C to +85°C.
This component is RoHS3 compliant and Halogen Free, making it suitable for various electronic designs. The 0805 package and surface mount capability facilitate automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the SML-LX0805USBC-TR LED is 3.5V at 20mA.
The peak wavelength of the SML-LX0805USBC-TR LED is 470nm.
The typical luminous intensity of the SML-LX0805USBC-TR LED is 25mcd at 20mA.
The viewing angle of the SML-LX0805USBC-TR LED is 140°.
The operating temperature range for the SML-LX0805USBC-TR LED is -40°C to +85°C.
Yes, the SML-LX0805USBC-TR LED is RoHS3 compliant.
The SML-LX0805USBC-TR LED is supplied in an 0805 (2012 Metric) package for surface mounting.
