| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,095 pcs
|
4095 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

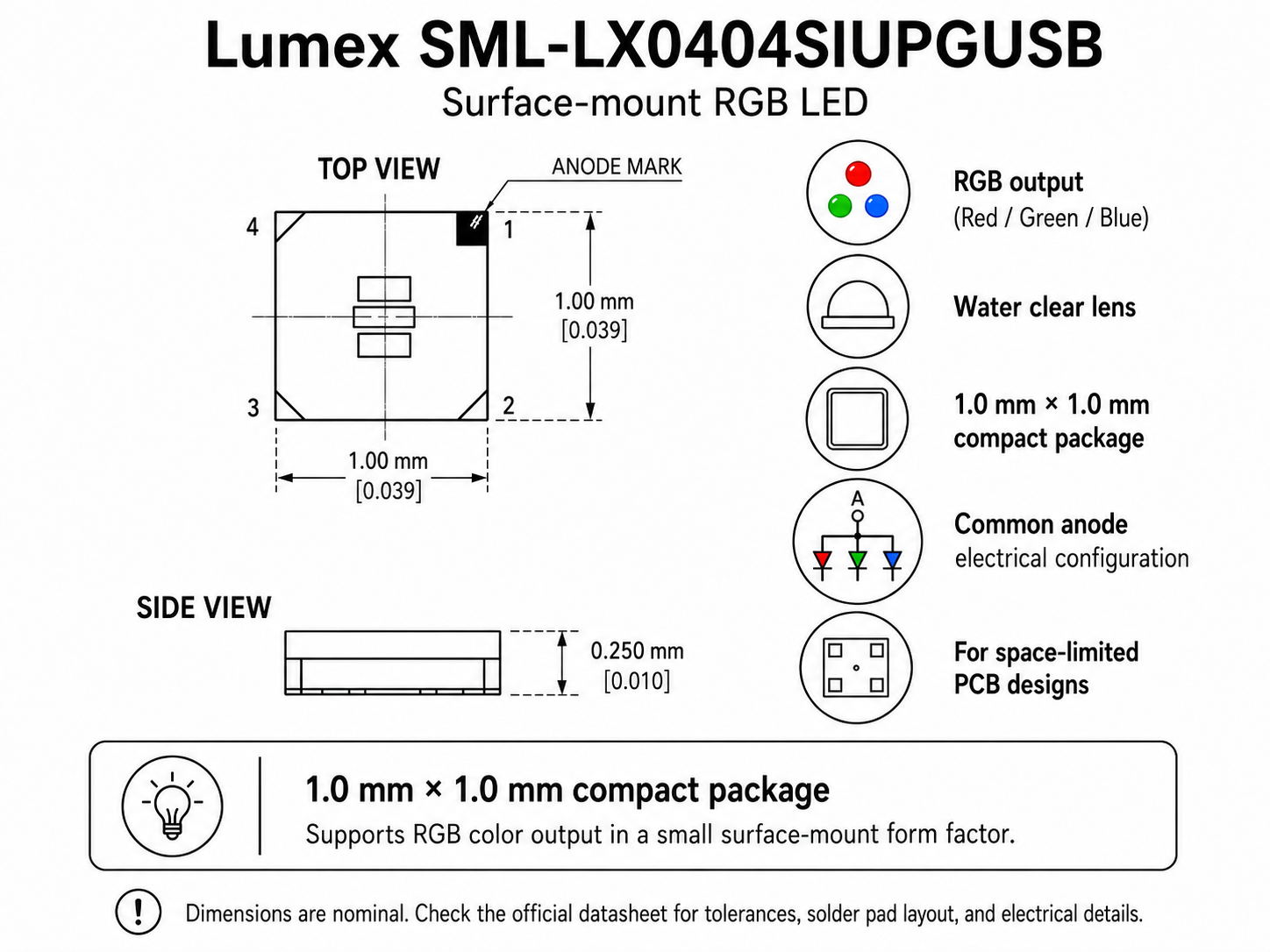

The Lumex SML-LX0404SIUPGUSB is a compact 0404 RGB surface-mount LED, ideal for applications requiring multi-color status indication within a small PCB area. This single LED integrates red, green, and blue light sources, eliminating the need for multiple discrete LEDs and simplifying design for clear visual feedback.
Key features include its small 0404 package size (1.00mm x 1.00mm) and a low-profile form factor, making it suitable for compact user interfaces, status indicators, ring lighting, and light-pipe designs. The electro-optical characteristics are specified at a low drive current of 2mA, which is beneficial for battery-powered devices and other low-power applications. The top-view design is optimized for visual indication and integration into light pipes or ring illumination structures.
This RGB SMD LED is designed for SMT assembly processes and offers versatile application potential in smart home products, access control devices, and handheld electronics where space and power consumption are critical design considerations. Its ability to provide multiple colors from a single position aids in creating intuitive user interfaces and status displays.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Lumex SML-LX0404SIUPGUSB LED provides Red, Green, and Blue (RGB) light output.
The SML-LX0404SIUPGUSB LED is supplied in a 0404 (1010 Metric) SMD package.
The SML-LX0404SIUPGUSB LED is designed for Surface Mount applications.
The typical forward voltages are 1.95V for Red, 2.85V for Green, and 2.73V for Blue, all specified at 2mA.
The typical luminous intensity is 30mcd for Red, 40mcd for Green, and 20mcd for Blue, all at 2mA.
The typical viewing angle for the SML-LX0404SIUPGUSB LED is 120°.
