SML-LX0303RGBC/1TR

The Lumex SML-LX0303RGBC/1TR is a compact RGB SMD LED designed for products requiring multi-color status indication within limited PCB space. By integrating red, green, and blue LEDs into a single small surface-mount package, it enables clearer user feedback without needing multiple discrete LED positions. This makes it suitable for compact electronics, smart devices, control panels, and handheld products where space, visibility, and color signaling are critical.

Key electrical specifications include nominal operating voltages of 2V for Red and 2.9V for Green and Blue. The luminous intensity is typically 14.25mcd for Red, 77mcd for Green, and 13mcd for Blue. It operates at low currents: 3mA for Red and 5mA for Green and Blue. The LED provides a wide 120° viewing angle. Peak wavelengths are 625nm for Red, 525nm for Green, and 465nm for Blue.

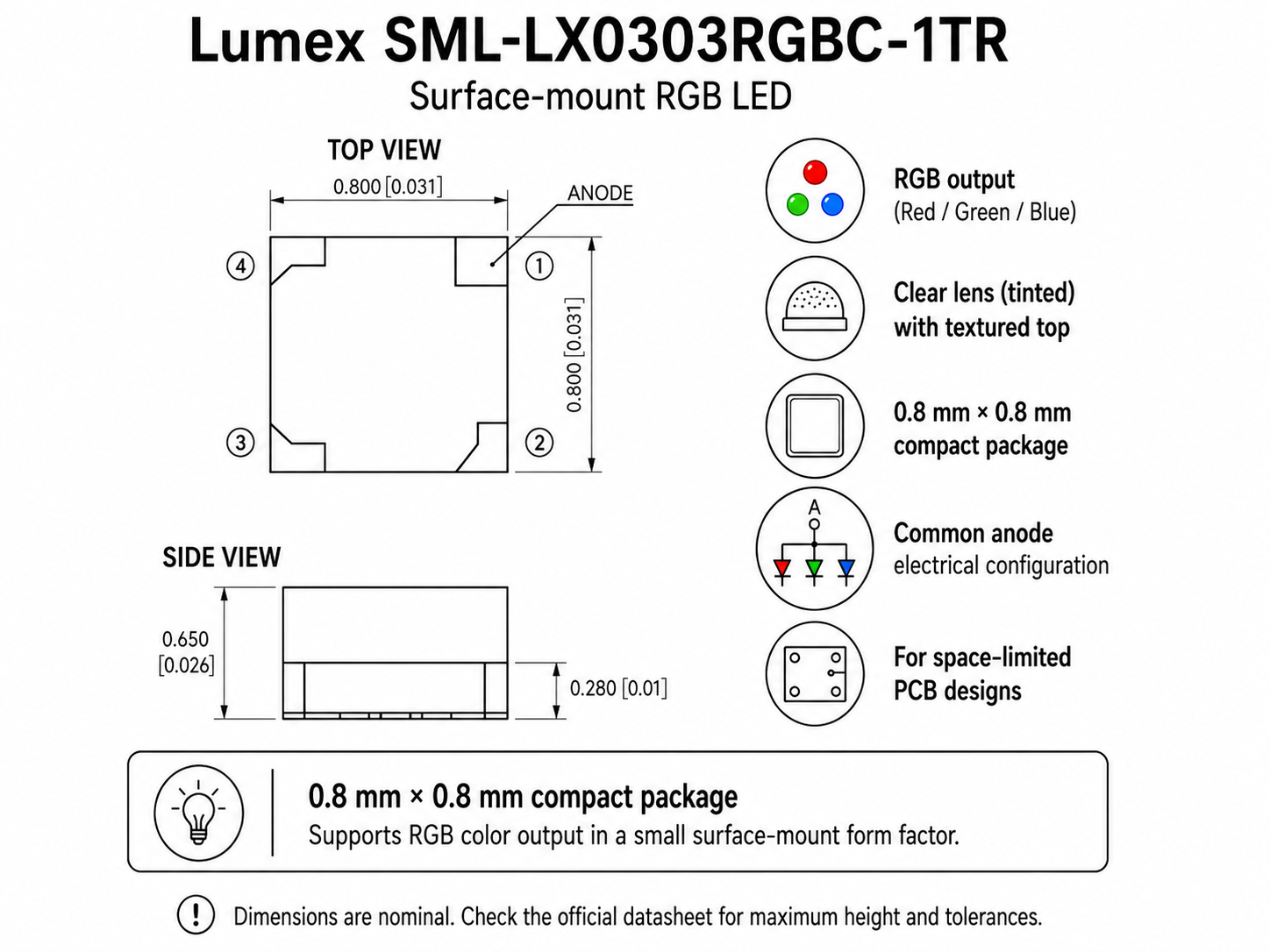

Mechanically, the LED features a 0.8mm x 0.8mm package size with a nominal height of 0.65mm. It is a surface-mount device with a clear lens, tinted, and a textured finish top. The package type is 4-SMD, No Lead.

This LED is suitable for applications such as consumer electronics, smart home devices, charging status indicators, appliance control boards, industrial control panels, and portable devices where space-saving and clear visual feedback are essential.
