| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

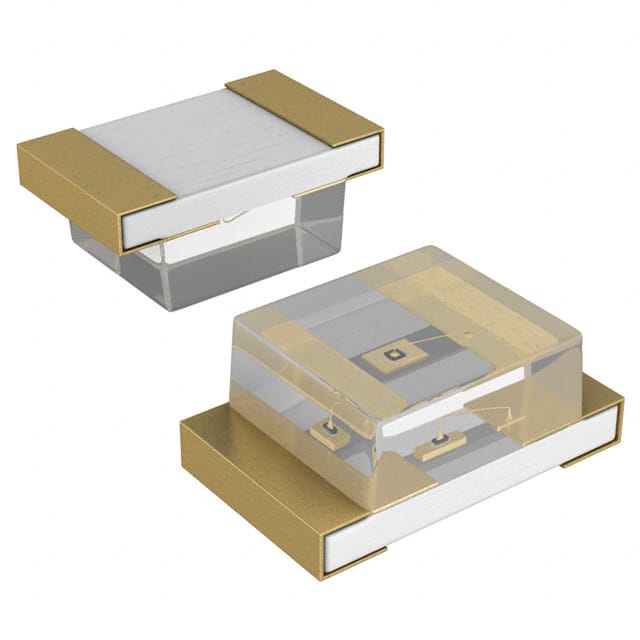

The ROHM Semiconductor SML-H12U8TT86 is a single-color, surface-mount chip LED. It features a red light output with a clear, colorless lens and a rectangle with a flat top style.
This LED operates with a typical forward voltage of 2.2V at 20mA and emits light with a dominant wavelength of 620nm. The typical luminous intensity is rated at 40mcd. The viewing angle is 140° in the X-Y plane and 110° in the X'-Y' plane.
Packaged in an 0805 (2012 Metric) SMT case, the dimensions are 2.00mm in length and 1.25mm in width, with a maximum height of 0.90mm. The LED is constructed with transparent colorless resin.
This component is suitable for applications such as switch backlights and indicators. It has an operating temperature range of -40°C to +85°C and a storage temperature range of -40°C to +100°C. The MSL level is 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the SML-H12U8TT86 LED is 2.2V at a current of 20mA.
The dominant wavelength of the SML-H12U8TT86 LED is 620nm at a current of 20mA.
The typical luminous intensity of the SML-H12U8TT86 LED is 40mcd at a current of 20mA.
The SML-H12U8TT86 LED is supplied in an 0805 (2012 Metric) package.
The operating temperature range for the SML-H12U8TT86 LED is -40°C to +85°C.
