SML-DSP1210USBC-TR The Lumex Opto/Components Inc. SML-DSP1210USBC-TR is a blue LED designed for surface mounting. It features a 2V forward voltage and a 20mA current rating.
Mfr Part #:

SML-DSP1210USBC-TR

Available from 1 distributors
Mfr Name: Lumex Opto/Components Inc.
Lumex Opto/Components Inc.
The Lumex Opto/Components Inc. SML-DSP1210USBC-TR is a blue LED designed for surface mounting. It features a 2V forward voltage and a 20mA current rating.
✓ Total Stock: 75 pcs
$ Price Range: $0.06

SML-DSP1210USBC-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request 05+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-DSP1210USBC-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Supplier Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SML-DSP1210USBC-TR Description

Short technical summary and product information.

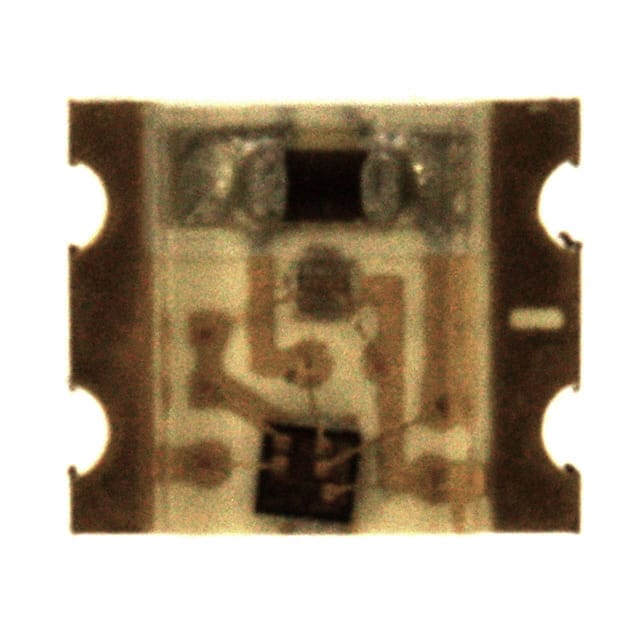

This Lumex Opto/Components Inc. SML-DSP1210USBC-TR is a discrete blue LED suitable for various electronic applications. It is housed in a 1210 (3225 Metric) SMD package, designed for surface mounting.



The LED operates with a forward voltage of 2V and a current rating of 20mA, producing a luminous intensity of 35mcd at a wavelength of 470nm. The lens is clear and colorless, with a rectangle flat top style, measuring 2.00mm x 2.70mm. The overall component dimensions are 3.20mm in length and 2.70mm in width, with a maximum height of 1.10mm.



It offers a wide viewing angle of 140 degrees. The component is specified with a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. It is also noted as RoHS3 Compliant and REACH Unaffected.

SML-DSP1210USBC-TR Quick Information

Product Type: LED
Canonical Name: Blue LED, 1210 (3225 Metric) Package, 2V, 20mA
Subcategory: LED Indication - Discrete

SML-DSP1210USBC-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SML-DSP1210USBC-TR Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-DSP1210USBC-TR Features

  • Blue LED with clear, flat top lens.
  • 1210 (3225 Metric) SMD package.
  • 2V forward voltage, 20mA current.
  • 35mcd luminous intensity at 470nm.
  • 140 degree viewing angle.

SML-DSP1210USBC-TR Applications

  • Suitable for indicator lighting applications.
  • Used in electronic devices requiring visual status indicators.
  • Ideal for low-voltage signaling circuits.
  • Suitable for compact electronic assemblies with surface mounting.
  • Used in consumer electronics for visual alerts.

SML-DSP1210USBC-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SML-DSP1210USBC-TR LED?

The forward voltage is 2V.

What is the current rating for this LED?

The current rating is 20mA.

What is the luminous intensity of the SML-DSP1210USBC-TR?

The luminous intensity is 35mcd.

What is the package type for this component?

The package type is 1210 (3225 Metric).

How is the SML-DSP1210USBC-TR mounted?

It is a surface mount component.

What is the RoHS status of this LED?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
