| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33,000 pcs
|
33000 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request | |
|
2,779 pcs
|
2779 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,480 pcs
|
1480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,480 pcs
|
1480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

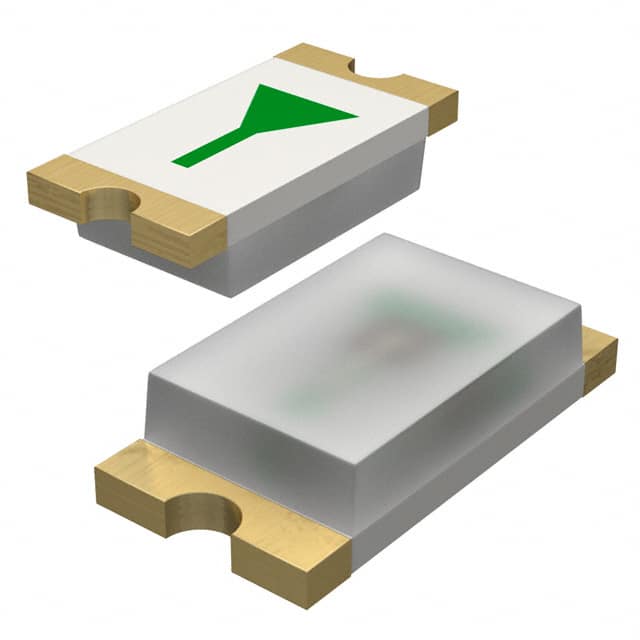

The ROHM Semiconductor SML-D12P8WT86 is a green, diffused chip LED housed in a compact 1.6x0.8mm 0603 package. It is designed for surface mounting and offers a typical forward voltage of 2.2V at 20mA, with a typical luminous intensity of 6.3mcd. The dominant wavelength is 560nm, providing a clear green light output.
This LED is suitable for various applications including switch backlights, indicators, and function displays. Its top-view light direction and wide 160° viewing angle make it versatile for panel indicators and status lighting. The LED operates within a temperature range of -40°C to +85°C and has a storage temperature range of -40°C to +100°C.
Key electrical characteristics include a maximum power dissipation of 54mW and a peak forward current of 100mA. The component is constructed with AlGaInP and milky white diffused resin. It is important to note that this product is not intended for automotive or industrial infrastructure usage. The MSL rating is Level 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the SML-D12P8WT86 LED at 20mA is 2.2V.
The typical luminous intensity of the SML-D12P8WT86 LED at 20mA is 6.3mcd.
The dominant wavelength of the SML-D12P8WT86 LED is 560nm.
The SML-D12P8WT86 LED has a size of 1.6mm L x 0.8mm W and is in a 0603 (1608 Metric) package.
The viewing angle of the SML-D12P8WT86 LED is 160°.
The MSL rating for the SML-D12P8WT86 LED is Level 3.
