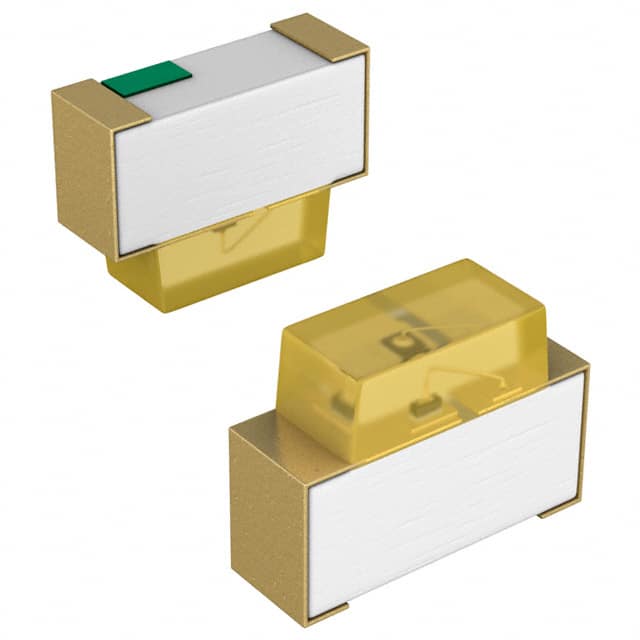

SML-A12UTT86 The ROHM SML-A12UTT86 is a red LED with a 2V forward voltage and 20mA current rating. It comes in a compact 1613 SMD package.
Mfr Part #:

SML-A12UTT86

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM SML-A12UTT86 is a red LED with a 2V forward voltage and 20mA current rating. It comes in a compact 1613 SMD package.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.06

SML-A12UTT86 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 17+ On Request On Request
Seba Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-A12UTT86 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lead Style
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

SML-A12UTT86 Description

Short technical summary and product information.

This ROHM Semiconductor SML-A12UTT86 is a red LED designed for discrete indication applications. It operates at a typical forward voltage of 2V and a forward current of 20mA, providing a luminosity of 100mcd.



The LED features a clear, rectangular lens with a flat top, measuring 1.20mm x 0.55mm. The overall package dimensions are 1.60mm in length and 1.15mm in width, with a maximum height of 0.65mm. It is designed for surface mounting with a right-angle orientation.



The SML-A12UTT86 is supplied in a 1613 package type and is available on tape and reel, suitable for automated assembly processes. Its dominant wavelength is 624nm, ensuring a distinct red light output.

SML-A12UTT86 Quick Information

Product Type: LED
Series: SML
Canonical Name: ROHM SML-A12UTT86 Red LED
Subcategory: Discrete LED

SML-A12UTT86 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SML-A12UTT86 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-A12UTT86 Features

  • Red LED with 2V typical forward voltage.
  • 20mA typical forward current rating.
  • 100mcd typical luminosity output.
  • 1613 SMD package with right-angle mount.
  • Clear, rectangular lens with flat top.

SML-A12UTT86 Applications

  • Ideal for indicator light applications.
  • Suitable for compact electronic devices.
  • Used in status signaling circuits.
  • Surface mount assembly compatible.

SML-A12UTT86 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SML-A12UTT86 LED?

The forward voltage is 2V.

What is the maximum forward current for this LED?

The maximum forward current is 20mA.

What is the luminous intensity of the LED?

The luminous intensity is 100mcd.

What is the lens shape of the SML-A12UTT86?

The lens shape is rectangular with a flat top.

What is the package type for this LED?

The package type is 1613 tape and reel.

Is this LED RoHS compliant?

Yes, it is RoHS3 compliant.
