SML-512UWT86 The ROHM Semiconductor SML-512UWT86 is a red diffused SMD LED. It operates at a 2V forward voltage and 20mA current, providing a luminous intensity of 63mcd.
Mfr Part #:

SML-512UWT86

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor SML-512UWT86 is a red diffused SMD LED. It operates at a 2V forward voltage and 20mA current, providing a luminous intensity of 63mcd.
✓ Total Stock: 69,000 pcs
$ Price Range: $0.06

SML-512UWT86 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
69,000 pcs
On Request
69000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SML-512UWT86 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SML-512UWT86 Description

Short technical summary and product information.

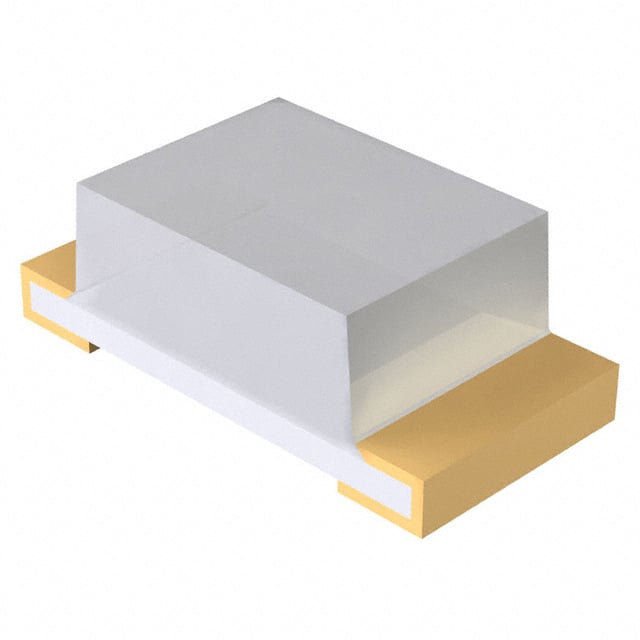

The ROHM Semiconductor SML-512UWT86 is a red, diffused surface-mount LED designed for indication purposes. It features a compact 0603 (1608 Metric) package measuring 1.60mm L x 0.80mm W with a maximum height of 0.65mm.



This LED operates with a typical forward voltage of 2V and a forward current of 20mA, capable of handling a peak forward current of up to 100mA. It emits light with a dominant wavelength of 624nm and a typical luminous intensity of 63mcd. The lens is diffused and white, with a rectangular shape and flat top, measuring 1.20mm x 0.80mm. The viewing angle is 140 degrees.



Designed for reliability, the SML-512UWT86 has an operating temperature range of -40°C to +100°C and a storage temperature range of -40°C to +100°C. Its chip structure is AIGaInP on GaAs.

SML-512UWT86 Quick Information

Product Type: LED
Canonical Name: ROHM Semiconductor SML-512UWT86 Red Diffused SMD LED
Subcategory: Standard LEDs - SMD

SML-512UWT86 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SML-512UWT86 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SML-512UWT86 Features

  • Red diffused SMD LED in 0603 package.
  • 2V typical forward voltage at 20mA.
  • 63mcd typical luminous intensity.
  • Wide 140-degree viewing angle.
  • Operating temperature range of -40°C to +100°C.

SML-512UWT86 Applications

  • Indicator for status and alerts.
  • Used in compact electronic devices.
  • Suitable for general lighting applications.
  • Ideal for panel and equipment indicators.

SML-512UWT86 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SML-512UWT86 LED?

The typical forward voltage for the SML-512UWT86 LED is 2V at 20mA.

What is the luminous intensity of the SML-512UWT86 LED?

The typical luminous intensity of the SML-512UWT86 LED is 63mcd at 20mA.

What is the operating temperature range for the SML-512UWT86 LED?

The SML-512UWT86 LED can operate in a temperature range from -40°C to +100°C.

What is the package type for the SML-512UWT86 LED?

The SML-512UWT86 LED is supplied in a 0603 (1608 Metric) surface-mount package.

What is the dominant wavelength of the SML-512UWT86 LED?

The dominant wavelength of the SML-512UWT86 LED is 624nm.
